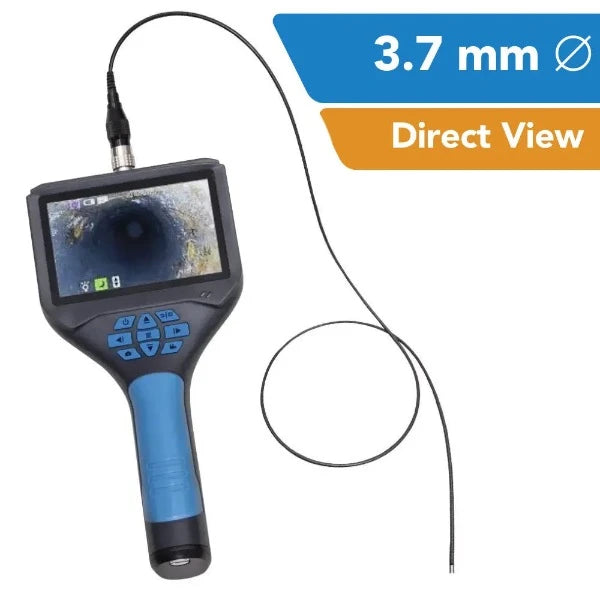

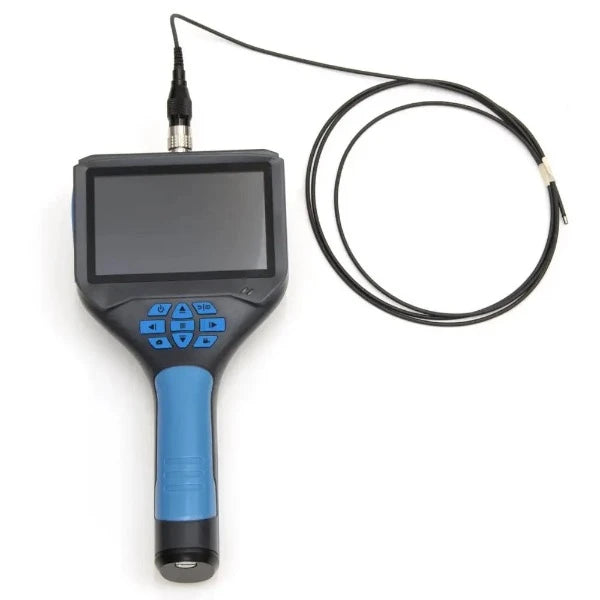

Yateks B Series Industrial Videoscope 3.7 mm OD Direct View Middle Focus

Yateks USA Vendor Logo SKU: EM13202

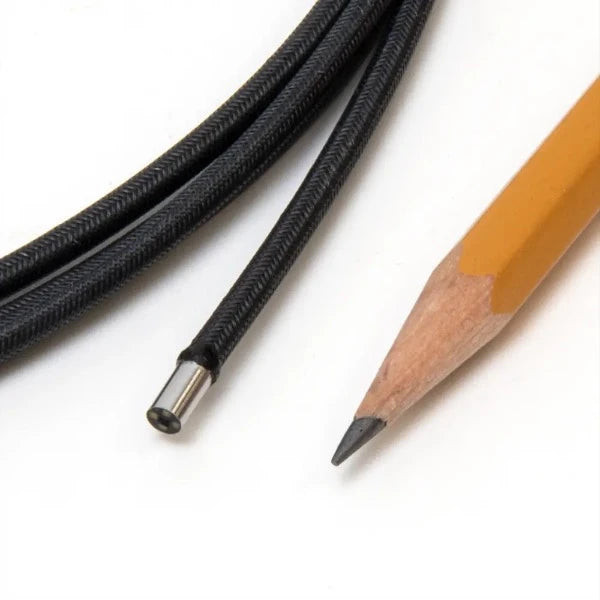

• 3.7mm Outer Diameter
• Direct View
• 90° Field of View
• 4.3-inch Screen
• Resolution: 640 x 480
• Probe temperature detection

Yateks - Length: 1 m (3.280')
Kit: Full System

Description

Details

Yateks B Series Industrial Videoscope 3.7 mm OD Direct View Middle Focus

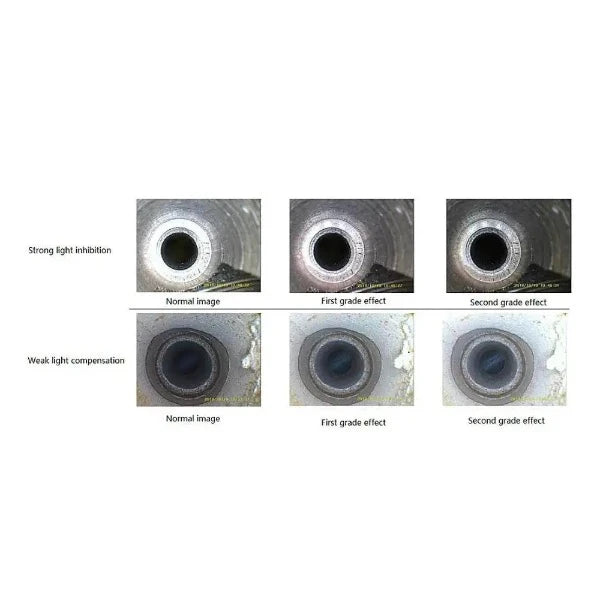

The Yateks B Series portable endoscope is a professional inspection tool developed for easy diagnosis and maintenance of hard-to-reach internal parts. Images display at 640 X 480 (more than 300,000 pixels) resolution on the 4.3-inch wide-angle display with true color representation and anti-glare finish to avoid the inconvenience of reflections during the inspection.

Specification

Dimension/Weight

246 x 321 x 123 mm / 2.3 kg

Display Screen

4.3 inch wide viewing angle screen

Control Lever

Electric rocker with lens able to rotate 360 degrees, automatic set, direction fine tuning adjustable, locking

Functions

Photo, video, brightness control, image zoom, image freeze, image locking and image flip

Storage

TF Card (32 GB maximum)

I/O port

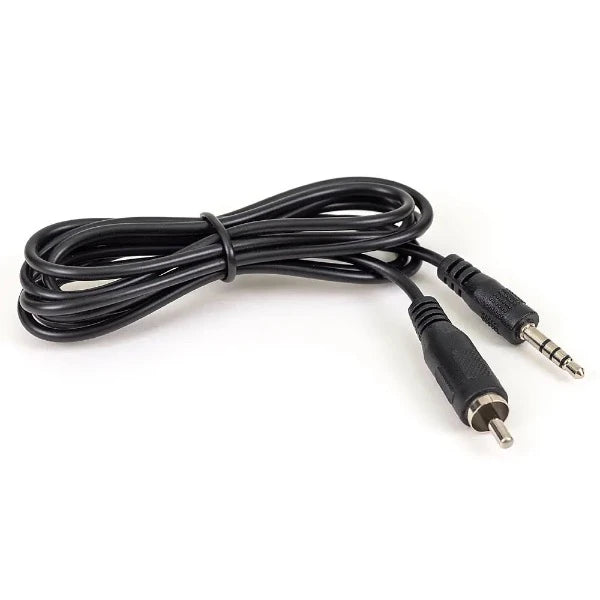

SD card, TV Out and USB

Battery/Standby time

18650 Lithium batteries (6 Hours)

Signal Output

PAL & NTSC

Compatibility

Support different diameter probes

Operation System

Real-time multitasking operation system

User Interface

Touch screen operation menu

File Management

Support image and video play, delete, format memo and naming

Image Format/Video Format

JPEG, AVI

Language

English / Chinese / Korean / German / Russian / Japanese

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67

Downloads

B Series Product Specification Sheet
