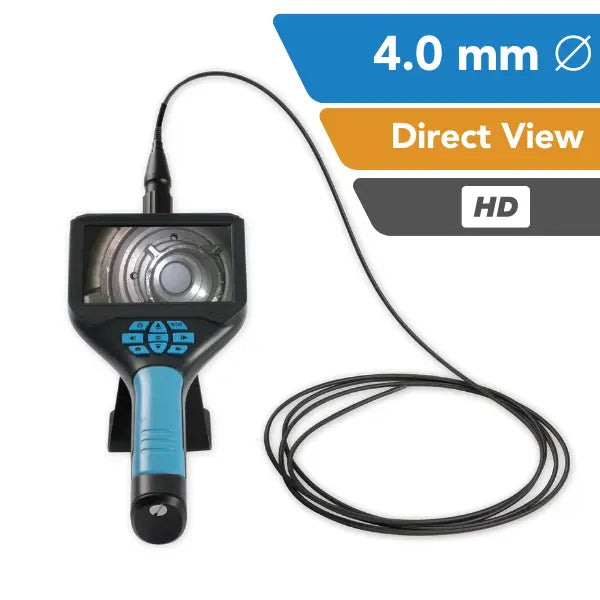

Yateks G Series Industrial HD Video Borescope 4.0 mm OD Direct View

Yateks USA Vendor Logo SKU: EM10258MFG: G4010FM-N

• 4.0 mm Outer Diameter
• Direct View
• 1280 x 720 (1 MP) Resolution
• 10-100 mm Depth of Focus
• 90° Field of View
• Touch-screen for easy operation

Kit: Full System
Length: 1.0 m (3.28')

Description

Details

The Yateks G Series Industrial Video Borescope is a compact, portable remote visual inspection (RVI) platform with a selection of small video probe outer diameters, lengths, and resolutions. With state-of-the-art image processing, wide field of view (FOV), and a choice of direction of view (DOV), the G Series video borescope system generates stunning images ideal for part and component inspections in the aerospace/aviation, power generation, petrochemical, and general manufacturing industries.

The Yateks G Series is the successor of the Yateks B and B+ Portable Series Video Borescopes. The new G Series has:

  • Touchscreen functionality on the 5" monitor
  • An upgraded input connector for enhanced durability and superior video quality
  • New video borescope probe features in specific models*

Its simple, intuitive operation and lightweight design make it the tool of choice for quick and portable visual inspections in a wide range of industrial parts and processes, particularly those involving tighter space constraints.

*See the Yateks G Series Video Borescope collection page for new options.

Specifications


Probe outer diameter

4.0 mm

Direction of View (DOV)

Direct (0°)

Insertion tube length

1.0, 2.0, and 3.0 meter lengths

Insertion tube type

Flexible

Insertion tube material

Tungsten braided

Resolution

1280 x 720 pixels (921,6000 total)

Depth of Field (DOF)

10-100mm

Field of View (FOV)

90°

Illumination

8,000 lx White LED

White Balance

AWB

Function

Image and video capture, brightness control, image zoom, image freeze, image locking, and image flip

Internal storage

TF card (up to 32GB)

Data I/O port

SD card interface, HDMI, USB interface

Brightness Control

3-degree brightness adjustment

Battery

Two rechargeable 18650 lithium-ion batteries

Standby time

≥6h

File management

Support image and video play, delete, format, and naming

Image format

JEPG (record the date and time)

Video format

AVI (record the date and time)

Signal Output

PAL & NTSC

Language

Chinese, English, Spanish, French, German, Russian, Japanese, Korean

System work temperature

-10°C~50°C

Probe work temperature

-10°C~60°C

IP Rating

Probe IP67
