Description
Details

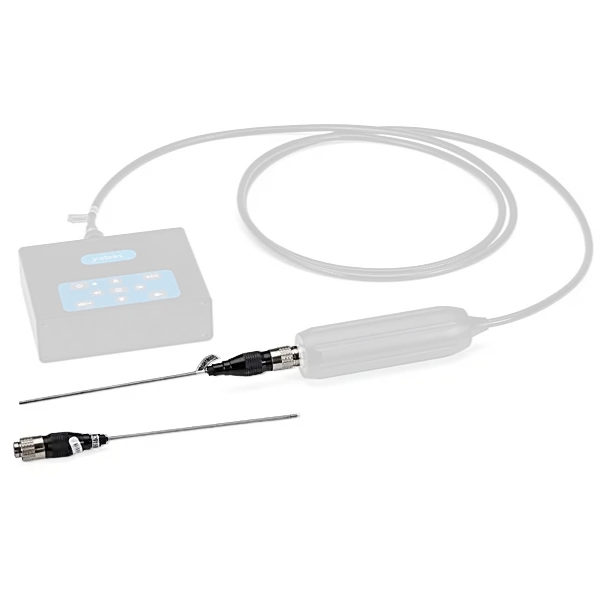

The Yateks G Benchtop 2.0mm x 300mm Rigid Direct View Probe is a stainless-steel rigid probe for the Yateks G Benchtop Series Industrial Video Borescope System. Its 2.0 mm diameter fits small bores in precision components, and the 300 mm working length reaches into machined passages, cast cavities, and assembled parts.
The direct view optics show the area straight ahead of the probe tip. This suits forward-facing inspection of bore ends, blind holes, and internal passages. A 3–50 mm depth of focus keeps close-range detail sharp, and the 90° field of view covers the inspection area. The 3,000 lux LED illumination lights reflective and dark surfaces inside the bore.
The probe connects to the G Series Benchtop Camera Control Unit. It displays on any external HD monitor and supports JPEG image capture and MOV video recording for inspection documentation.
Specifications
| Probe Diameter | 2.0 mm |
| Working Length | 300 mm |
| Direction of View | Direct (0°) |
| Resolution | 400 x 400 |
| Depth of Focus | 3–50 mm |
| Field of View | 90° |
| Illumination | LED, 3,000 lux |
| Probe Type | Rigid, stainless steel |
| Compatibility | G Series Benchtop Camera Control Unit |
