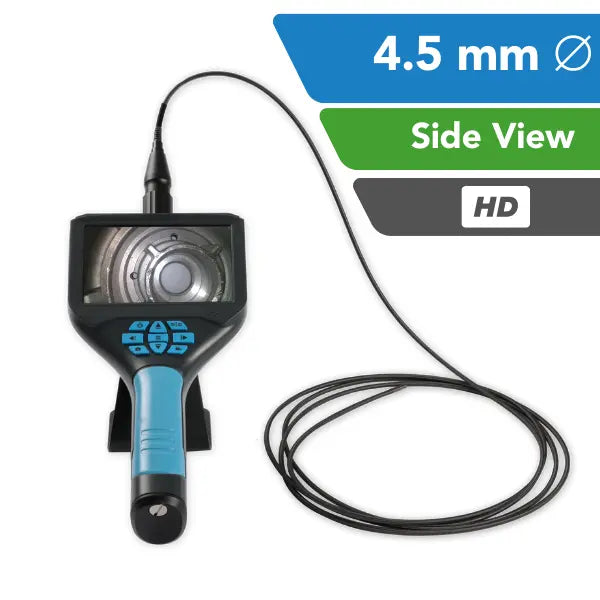

The Yateks G Series Industrial Video Borescope is a compact, portable remote visual inspection (RVI) platform with a selection of small video probe outer diameters, lengths, and resolutions. With state-of-the-art image processing, wide field of view (FOV), and a choice of direction of view (DOV), the G Series video borescope system generates stunning images ideal for part and component inspections in the aerospace/aviation, power generation, petrochemical, and general manufacturing industries.
The Yateks G Series is the successor of the Yateks B and B+ Portable Series Video Borescopes. The new G Series has:
- Touchscreen functionality on the 5" monitor

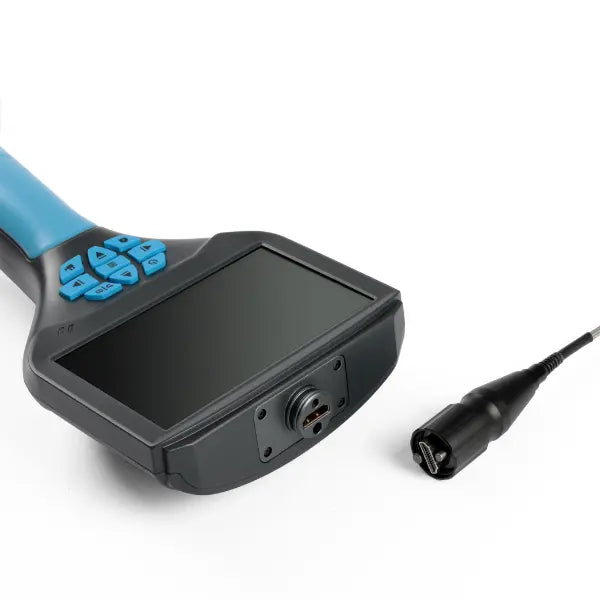

- An upgraded input connector for enhanced durability and superior video quality
-
New video borescope probe features in specific models*
Its simple, intuitive operation and lightweight design make it the tool of choice for quick and portable visual inspections in various industrial parts and processes, particularly those involving tighter space constraints.
*See the Yateks G Series Video Borescope collection page for new options.
Specifications
|
Probe outer diameter |
4.5 mm |
|
Direction of View (DOV) |
Side (90°) |
|
Insertion tube length |
1.0, 2.0, and 3.0 meter lengths |
|
Insertion tube type |
Flexible |
|
Insertion tube material |
Tungsten braided |
|
Resolution |
1280 x 720 pixels (921,6000 total) |
|
Depth of Field (DOF) |
5-50mm |
|
Field of View (FOV) |
90° |
|
Illumination |
8,000 lx White LED |
|
White Balance |
AWB |
|
Function |
Image and video capture, brightness control, image zoom, image freeze, image locking, and image flip |
|
Internal storage |
TF card (up to 32GB) |
|
Data I/O port |
SD card interface, HDMI, USB interface |
|
Brightness Control |
3-degree brightness adjustment |
|
Battery |
Two rechargeable 18650 lithium-ion batteries |
|
Standby time |
≥6h |
|
File management |
Support image and video play, delete, format, and naming |
|
Image format |
JEPG (record the date and time) |
|
Video format |
AVI (record the date and time) |
|
Signal Output |
PAL & NTSC |
|
Language |
Chinese, English, Spanish, French, German, Russian, Japanese, Korean |
|
System work temperature |
-10°C~50°C |
|
Probe work temperature |
-10°C~60°C |
|
IP Rating |
Probe IP67 |
