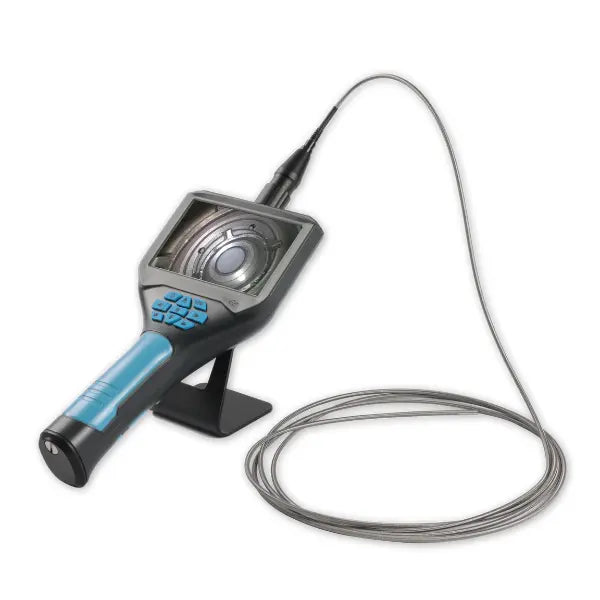

The Yateks G Series Industrial Video Borescope is a compact, portable remote visual inspection (RVI) platform with a selection of small video probe outer diameters, lengths, and resolutions. With state-of-the-art image processing, wide field of view (FOV), and a choice of direction of view (DOV), the G Series video borescope system generates stunning images ideal for part and component inspections in the aerospace/aviation, power generation, petrochemical, and general manufacturing industries.
The Yateks G Series is the successor of the Yateks B and B+ Portable Series Video Borescopes. The new G Series has:
- Touchscreen functionality on the 5" monitor

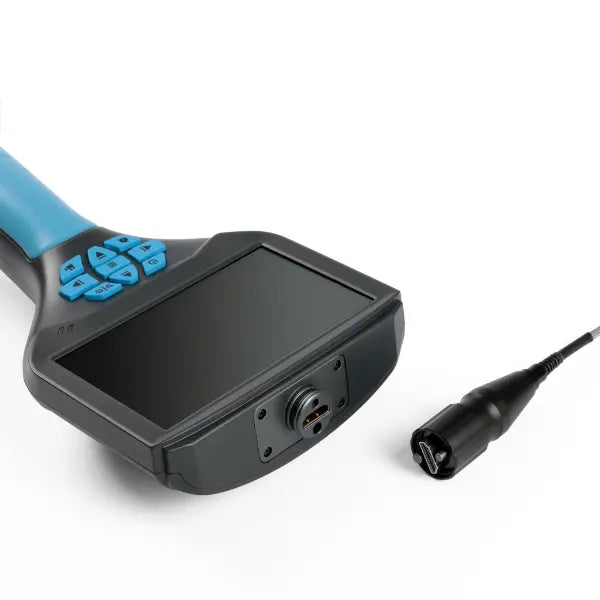

- An upgraded input connector for enhanced durability and superior video quality
-
New video borescope probe features in specific models*
Its simple, intuitive operation and lightweight design make it the tool of choice for quick and portable visual inspections in a wide range of industrial parts and processes, particularly those involving tighter space constraints.
*See the Yateks G Series Video Borescope collection page for new options.
Specifications
|

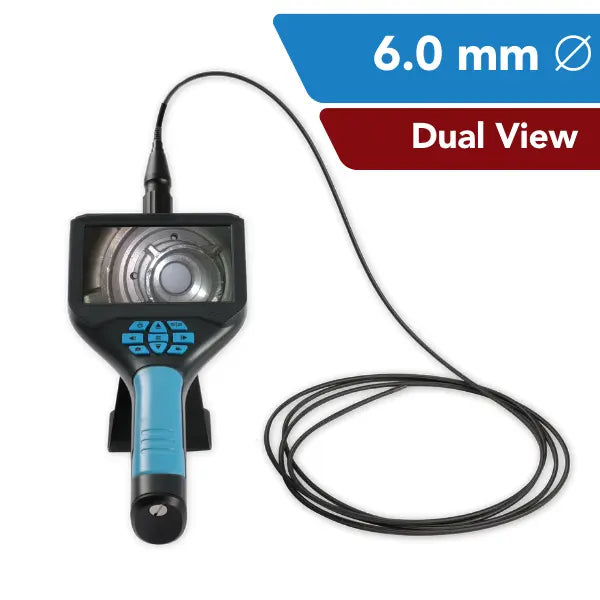

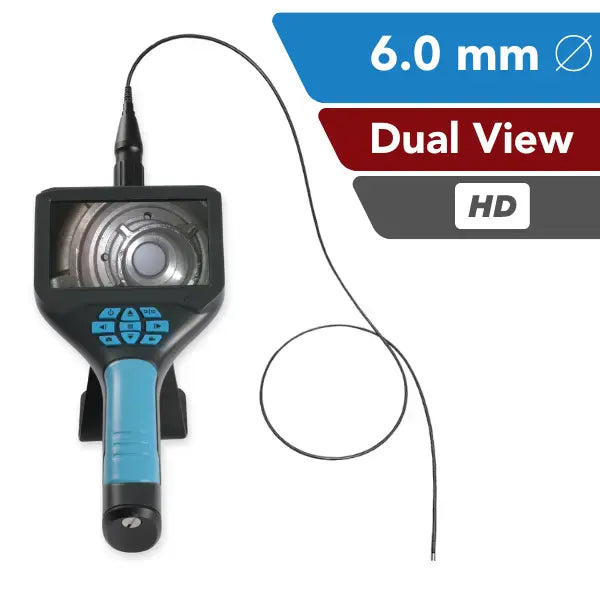

Probe outer diameter |
6.0 mm |
|
Direction of View (DOV) |
Dual (0° and 90°) |
|
Insertion tube length |
3.0, 5.0, 8.0, 10, and 15 meter lengths |
|
Insertion tube type |
Flexible |
|
Insertion tube material |
tungsten braid |
|
Resolution |
450,000 total pixels |
|
Depth of Field (DOF) |
10-100mm (forward) and 5-50mm (side) |
|
Field of View (FOV) |
90° |
|
Illumination |
5,500 lx (forward) and 6,000 lx (side) White LED |
|
White Balance |
AWB |
|
Function |
Image and video capture, brightness control, image zoom, image freeze, image locking, and image flip |
|
Internal storage |
TF card (up to 32GB) |
|
Data I/O port |
SD card interface, HDMI, USB interface |
|
Brightness Control |
3-degree brightness adjustment |
|
Battery |
Two rechargeable 18650 lithium-ion batteries |
|
Standby time |
≥6h |
|
File management |
Support image and video play, delete, format, and naming |
|
Image format |
JEPG (record the date and time) |
|
Video format |
AVI (record the date and time) |
|
Signal Output |
PAL & NTSC |
|
Language |
Chinese, English, Spanish, French, German, Russian, Japanese, Korean |
|
System work temperature |
-10°C~50°C |
|
Probe work temperature |
-10°C~60°C |
|
IP Rating |
Probe IP67 |
Items Included

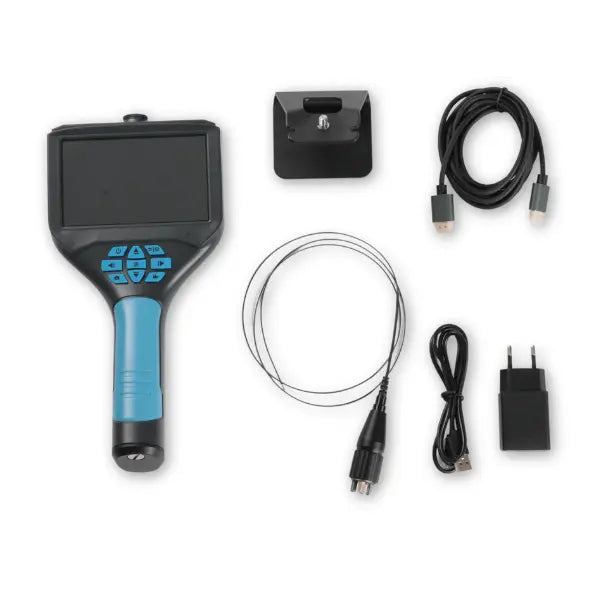

Yateks G Series Video Borescope Kits include:
- G Series Monitor (2 batteries in monitor)
- G Series Probe (model of choice)

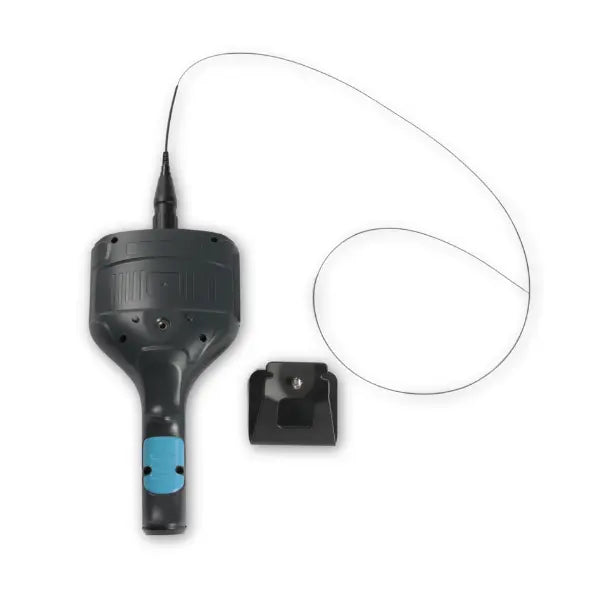

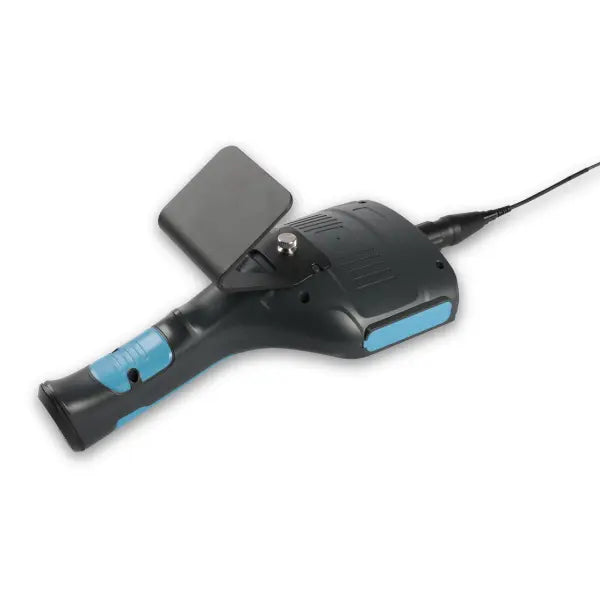

- G Series Monitor Stand
- Charger for monitor (USB-C to USB cable with wall adapter)
- HDMI to HDMI Cable
- Accessories- Manual, cleaning cloth, compartment access tool

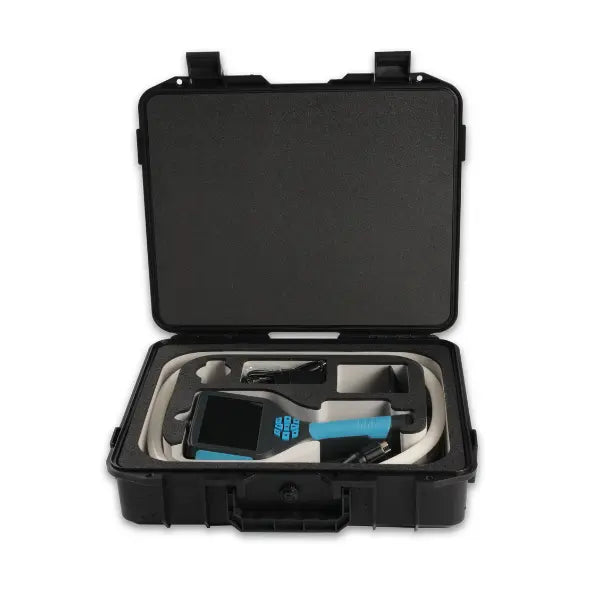

- Carrying case
Downloads
Yateks G Series Operational Manual
