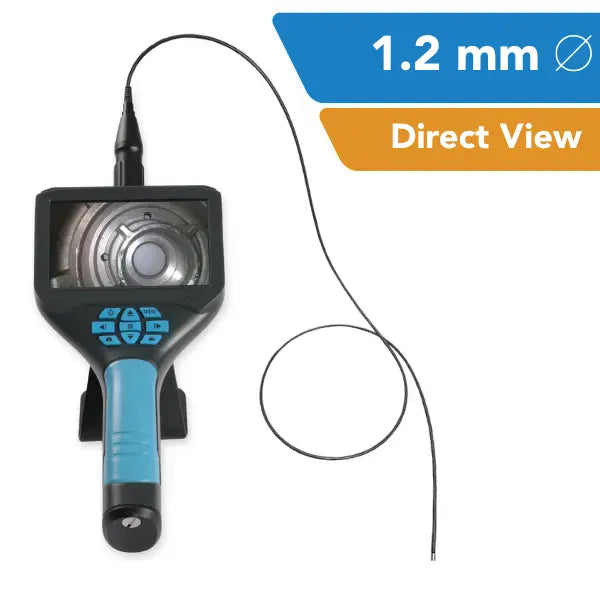

Yateks G Series Industrial Video Borescope 1.2 mm OD Direct View

Yateks USA Vendor Logo SKU: EM10248MFG: G1010FN-N

• 1.2 mm Outer Diameter
• Direct View
• 3-50 mm Depth of Focus
• 120° Field of View
• Touch-screen for easy operation
• 400 x 400-pixel Resolution

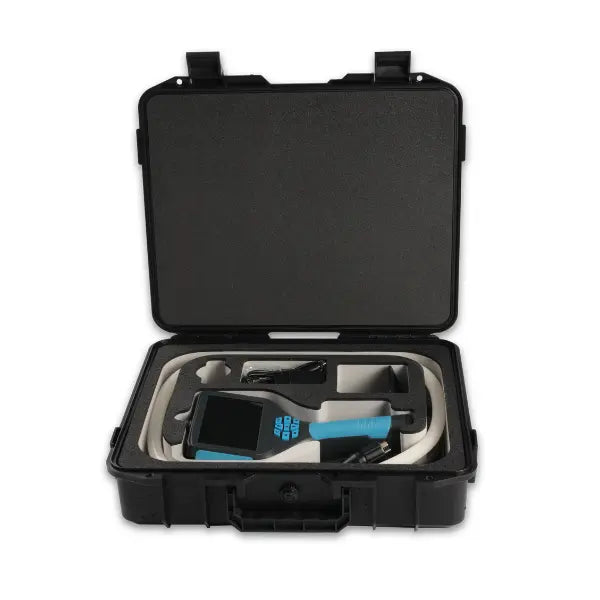

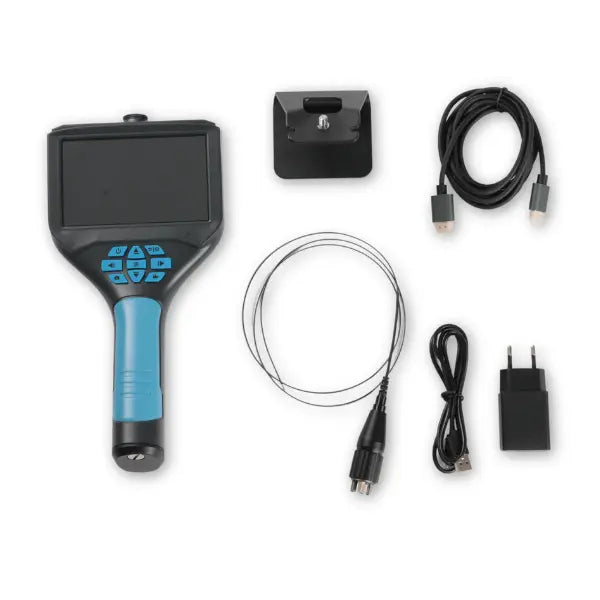

Kit: Full System
Length: 1.0 m (3.28')

Description

Details

The Yateks G Series Industrial Video Borescope is a compact, portable remote visual inspection (RVI) platform with a selection of small video probe outer diameters, lengths, and resolutions. With state-of-the-art image processing, wide field of view (FOV), and a choice of direction of view (DOV), the G Series video borescope system generates stunning images ideal for part and component inspections in the aerospace/aviation, power generation, petrochemical, and general manufacturing industries.

The Yateks G Series is the successor of the Yateks B and B+ Portable Series Video Borescopes. The new G Series has:

  • Touchscreen functionality on the 5" monitor

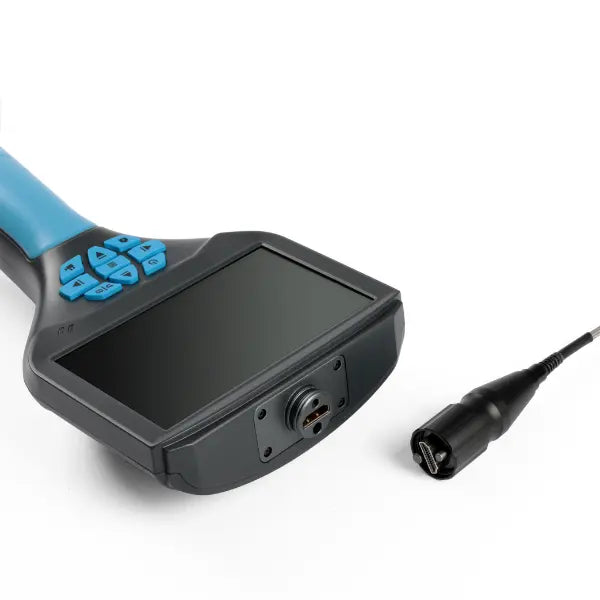

  • An upgraded input connector for enhanced durability and superior video quality
  • New video borescope probe features in specific models*

Its simple, intuitive operation and lightweight design make it the tool of choice for quick and portable visual inspections in a wide range of industrial parts and processes, particularly those involving tighter space constraints.

*See the Yateks G Series Video Borescope collection page for new options.

Specifications

Probe outer diameter

1.2 mm

Direction of View (DOV)

Direct (0°)

Insertion tube length

1.0 meter length only

Insertion tube type

Flexible

Insertion tube material

Tungsten braid

Resolution

400 x 400 pixels (160,000 total)

Depth of Field (DOF)

3-50mm

Field of View (FOV)

120°

Illumination

1,500 lx

White Balance

AWB

Function

Image and video capture, brightness control, image zoom, image freeze, image locking, and image flip

Internal storage

TF card (up to 32GB)

Data I/O port

SD card interface, HDMI, USB interface

Brightness Control

3-degree brightness adjustment

Battery

Two rechargeable 18650 lithium-ion batteries

Standby time

≥6h

File management

Support image and video play, delete, format, and naming

Image format

JEPG (record the date and time)

Video format

AVI (record the date and time)

Signal Output

PAL & NTSC

Language

Chinese, English, Spanish, French, German, Russian, Japanese, Korean

System work temperature

-10°C~50°C

Probe work temperature

-10°C~60°C

IP Rating

Probe IP67
