Yateks P Series Deluxe Industrial Videoscope 6 mm OD Direct View Middle Focus Fiber & LED

Yateks USA Vendor Logo SKU: EM17102

• 6 mm Outer Diameter
• 8-150 mm Depth of Focus
• 4-Way Motorized Articulation
• 170° Articulation Range
• Resolution (1280x720 pixels)
• 8-inch Touch Screen

Yateks - Length: 1 m (3.280')
Kit: Full System

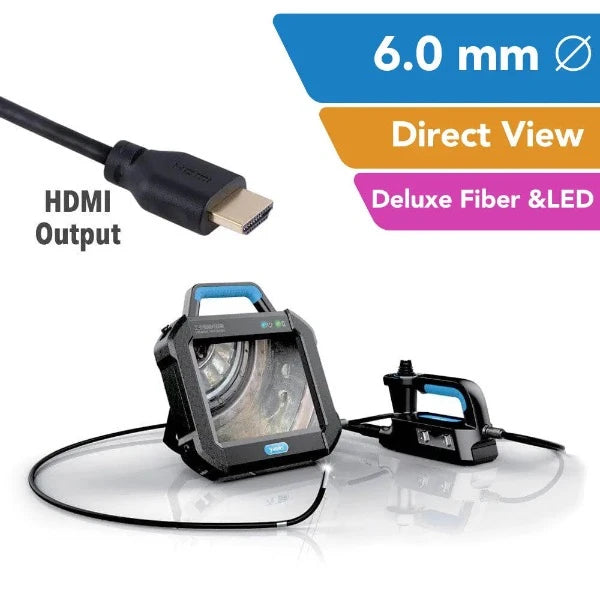

Yateks P Series Deluxe Industrial Videoscope 6 mm OD Direct View Middle Focus Fiber & LED

The Yateks P series is one of the most versatile industrial videoscope platforms available, featuring a wide range of interchangeable probe configurations including variable sizes, lengths, and styles (i.e. dual view / UV option). Great for benchtop use, the system is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set. With an 8” HD touchscreen monitor, motorized articulation, and an assortment of multi-functional capabilities, the Yateks P series is the ideal videoscope system for both multi-part inspections and specialty applications alike.

The P series deluxe 6 mm direct view middle focus fiber & LED videoscope features fiber plus LED illumination for increased light output over the LED only model. With HD resolution at 1280 x 720 for a total of nearly 1,000,000 total pixels, this deluxe videoscope offers the highest image quality and light output for more sensitive inspection requirements.


Dimensions / Weight

246 x 321 x 123 mm / 2.3 kg

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

Control Lever

Electric rocker, 360-degree rotation, articulation lock, automatic set


Image capture, video recording, playback, articulation, illumination control


32 GB high-speed SD card (Up to 128 GB)

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB


Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

Full System

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter


Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touch screen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format



English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature


Probe Working Temperature


Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67


Operations Manual

Product Brochure
