Description
Details

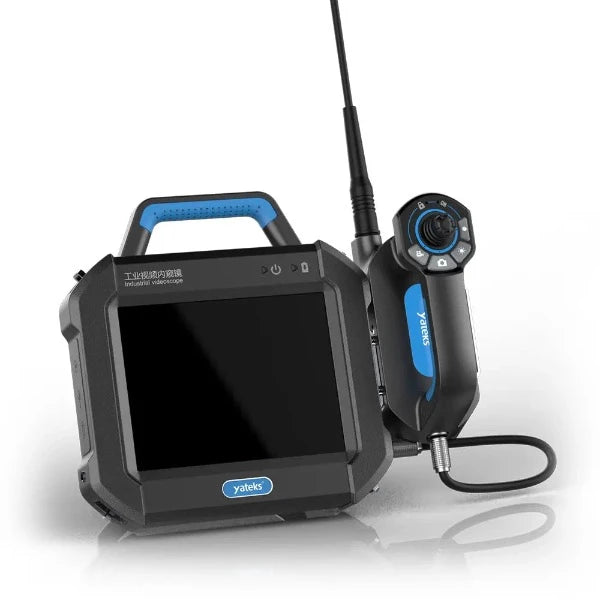

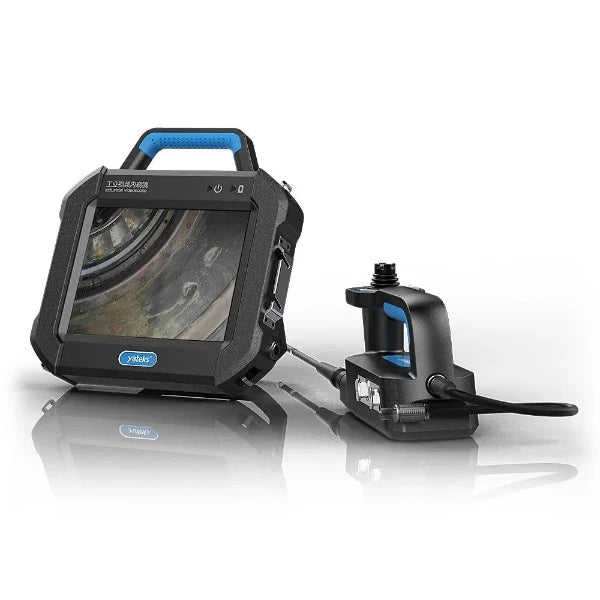

The Yateks P series is one of the most versatile industrial videoscope platforms available, featuring a wide range of interchangeable probe configurations including variable sizes, lengths, and styles (i.e. dual view / UV option). Great for benchtop use, the system is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set. With an 8” HD touchscreen monitor, motorized articulation, and an assortment of multi-functional capabilities, the Yateks P series is the ideal videoscope system for both multi-part inspections and specialty applications alike.

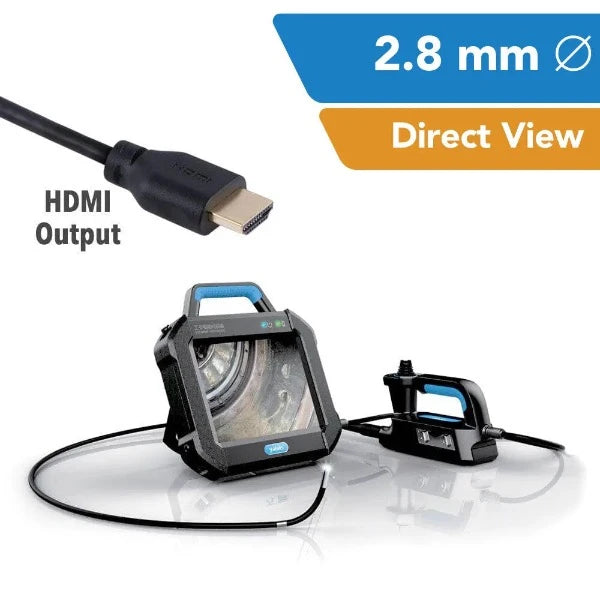

The P series 2.8 mm videoscope offers the highest resolution in its size class at 640 x 480 for a total of over 300,000 total pixels. The 4-way articulation provides added mobility making the 2.8 mm size an excellent option for small diameter inspections that demand the highest image quality.
Specifications
|
Dimensions / Weight |
246 x 321 x 123 mm / 2.3 kg |
|

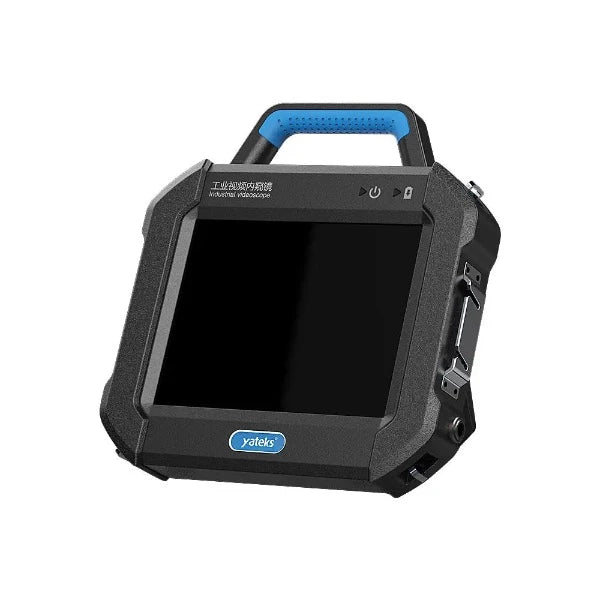

Display Screen |
8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio) |
|
Control Lever |
Electric rocker, 360-degree rotation, articulation lock, automatic set |
|
Functions |
Image capture, video recording, playback, articulation, illumination control |
|
Storage |
32 GB high-speed SD card (Up to 128 GB） |
|
I/O port |
SD card, HDMI port (1024 x 768), charge and mini USB |
|
Battery |
Four rechargeable 18650 lithium-ion batteries |
|
Brightness Control |
5 level adjustment |
|
Full System |
Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter |
|
Compatibility |
Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement |
|
Operating System |
Real-time multifunctional operating system |
|
User Interface |
Touch screen operation menu |
|
File Management |
Auto or manual file folder creation, rename files |
|
Image Control |
Digital zoom, image and video playback, freeze-frame, flip image, mirror image |
|
Image Format/Video Format |
JPEG, AVI |
|
Language |
English / Chinese / Korean / German / Russian / Japanese |
|
Color Settings |
4 modes for different applications |
|
White Balance |
Automatic, manual white balance |
|
Exposure Mode |
Automatic, manual |
|
Firmware Update |
Via SD card service pack |
|
Monitor Working Temperature |
-10～50° |
|
Probe Working Temperature |
-20～70° |
|
Relative Humidity |
Highest 90%, no condensation |
|
IP Rating |
Monitor IP54 / Probe IP67 |
