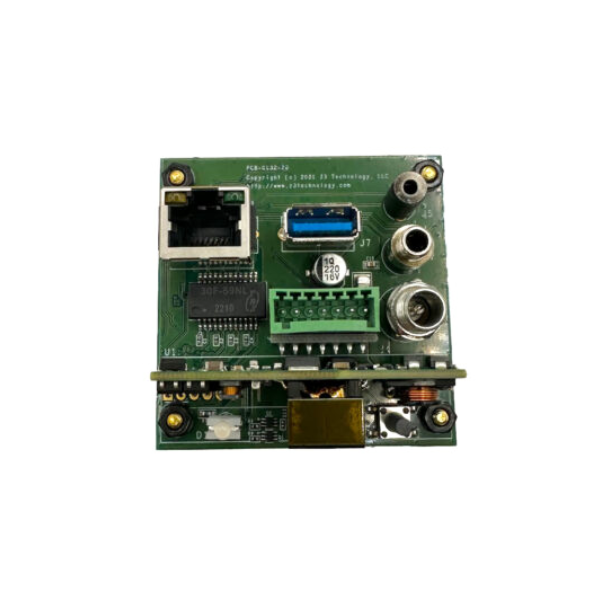

The Q605-60H by Z3 Technology is a compact H.265/HEVC and H.264 video encoder board that supports block cameras like the Sony FCB-ER9500, FCB-EW9500H, and FCB-ER8530/J.
The powerful Z3 Technology Q605-60H encoding processor takes HDMI, Sony HDMI via KEL, power-over-ethernet (PoE), gigabit ethernet, USB3.1 video signals, and RS-232/RS-422/RS-485 command protocols. Video and audio can stream IP and simultaneously record to a USB or micro SD card.
The Q6035-60H connects to a Sony module using a 30-pin micro-coaxial and has a PoE option for power input. This module can control external devices over networks making it the ultimate OEM building block of your zoom block network system.
Other features include:
- Easy-to-use HTTP/HTTPS web GUI with live video preview
- Control via HTTP/HTTPS web GUI, API, ONVIF, or SSH/ Serial
- Low Latency + Low Power
- Pass VISCA™ Camera Control Commands over IP
- ONVIF® Profile S and T
- Simultaneous Stream and Record
- Overlay of GPS or NTP Data
- Pelco D PTZ Positioning
- Absolute PTZ Support
- Timestamp and KLV support through overlay or SEI data
- SRT Modes Supported: Caller, Sender, Rendezvous & SRT Encryption
Specifications
|
Visible Camera Format |
HDMI |
|
Recording |
To network file system, USB, or Micro SD |
|
Additional Interfaces |
HDMI In, HDMI Out, Sony HDMI via KEL, POE, Gigabit Ethernet, USB 3.1, Audio Input, RS-232, Serial I/O (RS-232, RS-422, RS-485) |
|
Video Codecs |
H.265/HEVC, H.264, and MJPEG |
|
Encoding Resolutions |
4K UHD & HD up to 60 fps (2160p, 1080p, 720p & lower) |
|
Output Formats |
RTP, RTSP, MPEG-2 TS, RTMP, RTMPS and SRT HDMI Output (up to 4Kp30) |
|
Encoder Board Size |
58 x 58 x 38 mm (2.28 x 2.28 x 1.49 in) |
|
Video Latency |
Can reach less than 80ms latency |
|
Encoder Board Weight |

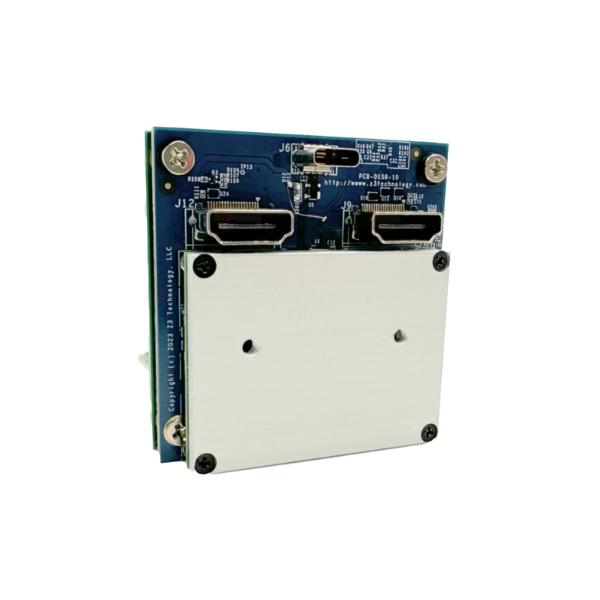

107 g (aluminum heat sink is an additional 40 g) |
|
Power Consumption |
4.5W typical while encoding 4Kp60 |
|
Power Supply |
12V DC or PoE 802.3af/at class 0 |
|
Operating Temperature |
-5°C to +70°C |
