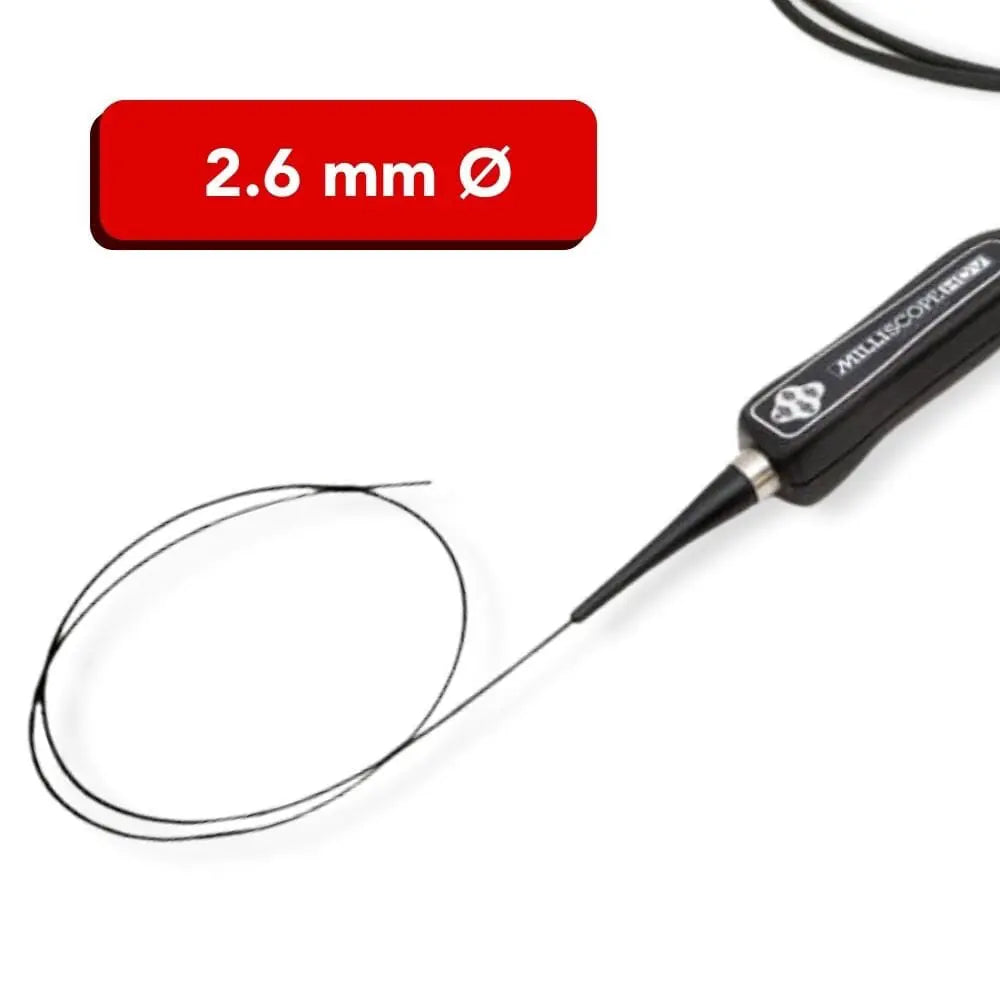

Zibra Milliscope HDV Videoprobe System

Zibra Vendor Logo SKU: EM14289MFG: HDV12.500.00

• Modular platform design allows for multiple
scope configurations
• Small diameter scope with poly-braided nylon
coated flex shaft
• 1080p digital video output via HDMI
• Image and video capture on removable drive
• On-screen display includes saved image gallery

Choose a Camera Control Unit

Zibra Milliscope HD Base Unit
Zibra Milliscope HD Base Unit
Milliscope HD Integrated Battery Powered System w/ Monitor
Milliscope HD Integrated Battery Powered System w/ Monitor

Choose a Monitor

Sony LMD-B170 17 inch Full HD LCD Color Monitor
Sony LMD-B170 17 inch Full HD LCD Color Monitor
Tru-Vu Monitor VMOBX-15.6Z 15.6” Daylight Readable LCD Monitor Package
Tru-Vu Monitor VMOBX-15.6Z 15.6” Daylight Readable LCD Monitor Package
Diameter: 1.2 mm
Length: 500 mm
Direction of View (DOV):

Description

Details

The Zibra Milliscope HDV is a small-diameter, high-resolution videoscope product that interfaces with the Milliscope HD base unit and allows remote visual inspection in small, precision parts. A miniature 160,000-pixel CMOS image sensor combined with high-performance optics provides picture quality in diameters as small as 1.2 mm and lengths up to 6.5 meters. All Milliscope HDV probes are rugged and designed to withstand repeated use in the harshest inspection environments.



Specifications

System Specifications

Camera Sensor CMOS
Resolution 400 x 400 px (160,000 total)
Video Output HDMI
Scope Diameters 1.2 mm, 1.6 mm, 2.0 mm, 2.2 mm, 2.6 mm, 3.4 mm
Scope Lengths 500 mm – 6,500 mm
Directions of View 0° & 90° (product specific)
Depth of Field

3 - 50 mm for 0° DOV scopes

1 - 30 mm for 90° DOV scopes

Field of View 120° diagonal, 85° horizontal (in air)
Field of illumination 120°
Maximum operating temperature 150° F
Recording Image & video recordings



Probe Shaft Specifications

Scope Diameter Sheathing Type Minimum Bend Radius Tip Length
1.2 mm Inner polyimide / Braid / Nylon exterior coating (sealed/wipeable) 25 mm 6.4 mm

1.6 mm

Inner polyimide / Braid / Nylon exterior coating (sealed/wipeable)

30 mm

7.6 mm

2.0 mm

Inner Nylon / Braid / Nylon exterior coating (sealed / wipeable) 35 mm

7.6 mm

2.2 mm SS tight weave braided monocoil (NOT sealed / NOT wipeable) 20 mm 6.4 mm

2.6 mm

SS tight weave braided monocoil (NOT sealed / NOT wipeable)

25 mm

6.4 mm

3.4 mm Inner Nylon / Braid / Nylon exterior coating (sealed / wipeable) 35 mm 7.6 mm

Downloads

Zibra Milliscope HD Manual
