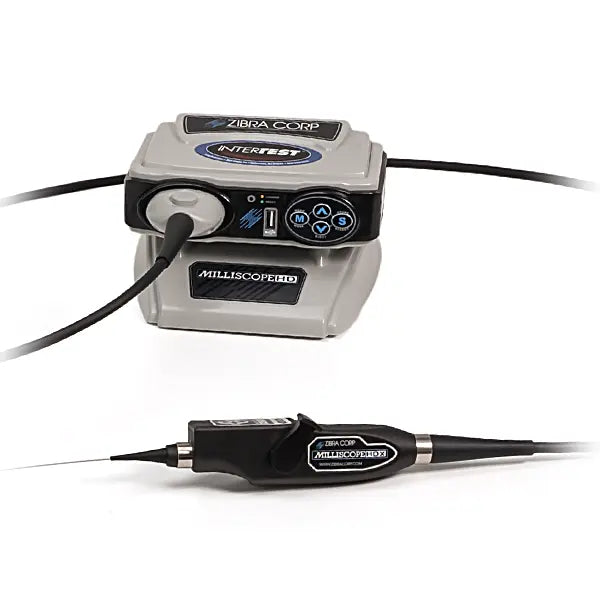

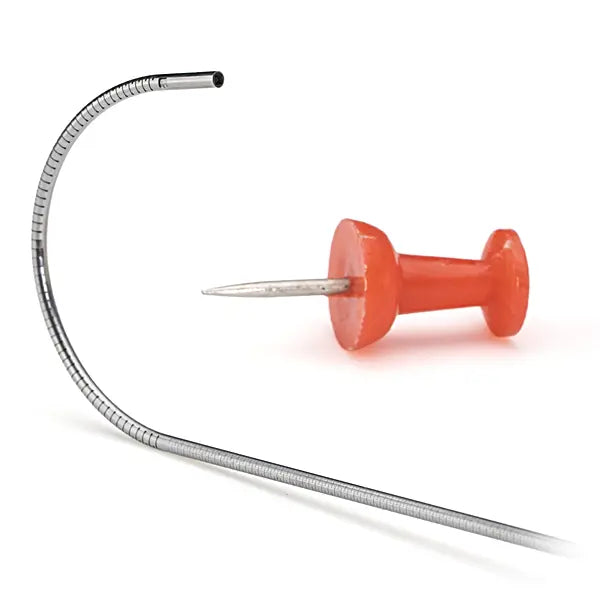

The Zibra Milliscope HDX Videoprobe System is an ultra-slim, 2-way articulating video borescope designed for visual inspection in the most confined and inaccessible spaces. Available in 1.1 mm and 1.6 mm probe diameters, the HDX extends the capability of the Milliscope HD platform (using the same Milliscope HD Base Unit) with innovative shape-memory metal shafts and full ±170° articulation, giving technicians a complete look in any direction without overstressing the probe.
The Milliscope HDX is built for applications where standard video borescopes can’t reach: tight-bore tubing, small-diameter components, and precision assemblies across aerospace, medical manufacturing, and general industrial inspection. Despite its sub-2 mm form factor, it delivers 160,000-pixel CMOS imaging with the same handset controls found across the Milliscope HDV product line.
Specifications
| Name | Specification |
|---|---|

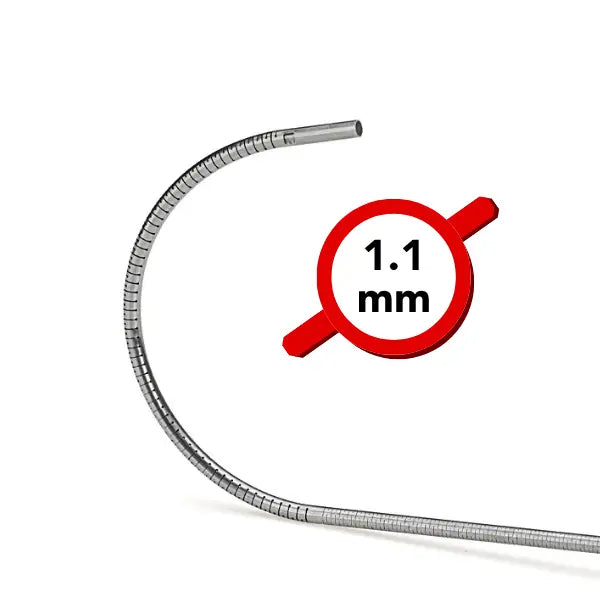

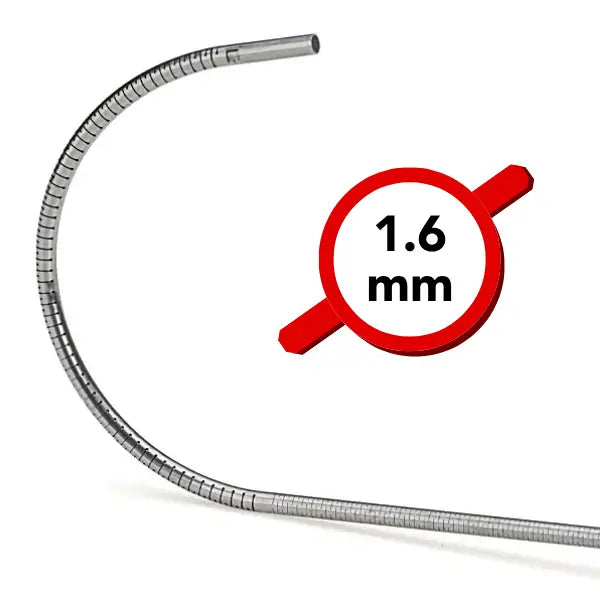

| Probe Diameter | 1.1 & 1.6 mm |
| Available Lengths | 150, 300, 500, or 1000 mm |

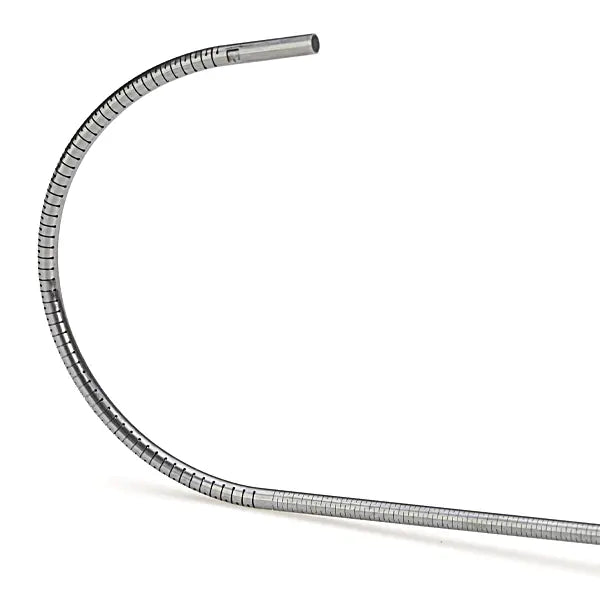

| Articulation | ±170° (2-way) |
| Shaft Material | Shape Memory Metal |
| Image Sensor | CMOS |
| Effective Pixels | 160,000 |
| Resolution | 400H × 400V |
| Field of View | 120° diagonal / 85° horizontal (in air) |
| Depth of Field | 1.0 – 3.0 mm (1.1 mm OD) & 3.0 – 50 mm (1.6 mm OD) |

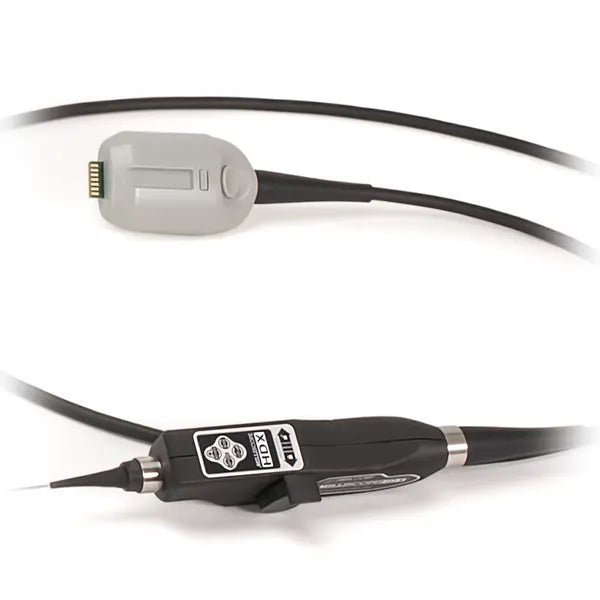

| Base Unit Compatibility | Milliscope HD |

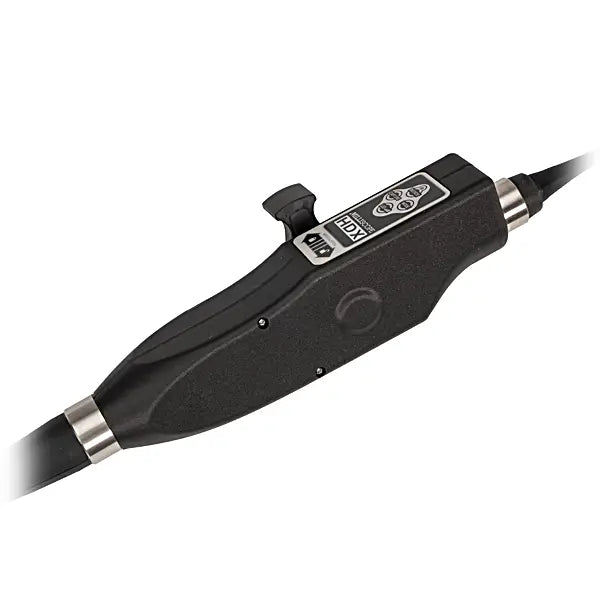

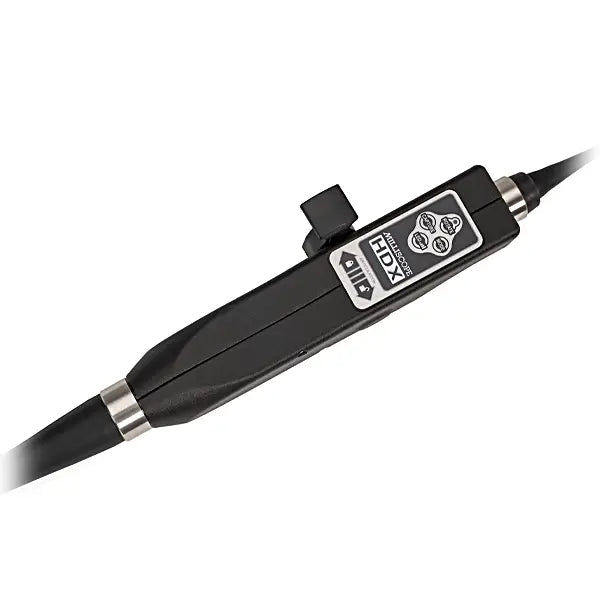

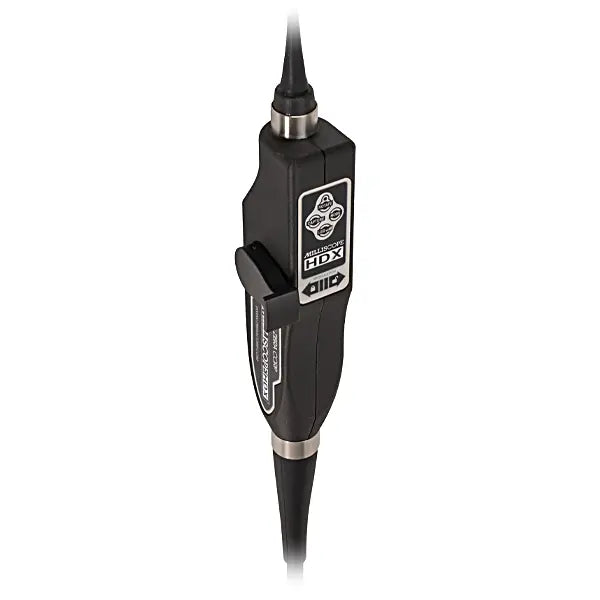

| Controls | Push-button image/video capture, LED intensity, image rotate, manual/auto gain |
