Zibra MilliWand HDF Semi-Rigid Borescope System

Zibra Vendor Logo SKU: EM18665MFG: HDF05.105.00SRMW6

• Quick-Change Operation
• Replaceable Borescope Tips
• Ergonomic Handle for Precision Inspection
• Compact, versatile Operation
• 1080p HD Digital Video Output via HDMI
• Image and Video Capture on Removable Drives

Diameter: 0.5 mm
Length: 105 mm
Direction of View:

Description

Details

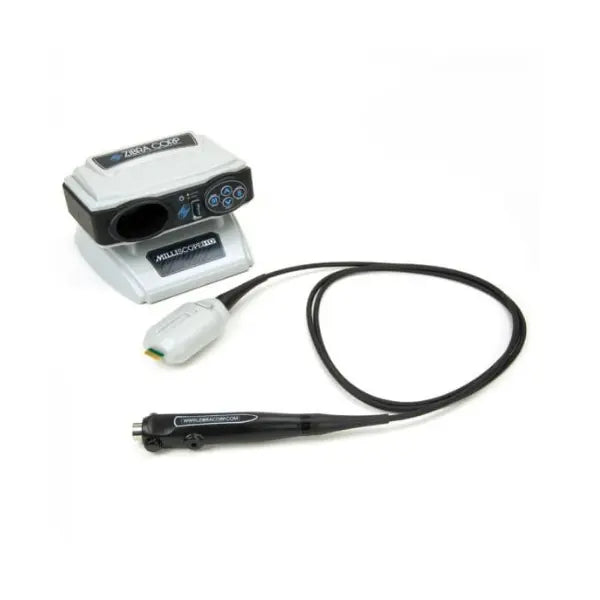

Zibra MilliWand HDF Semi-Rigid Borescope System

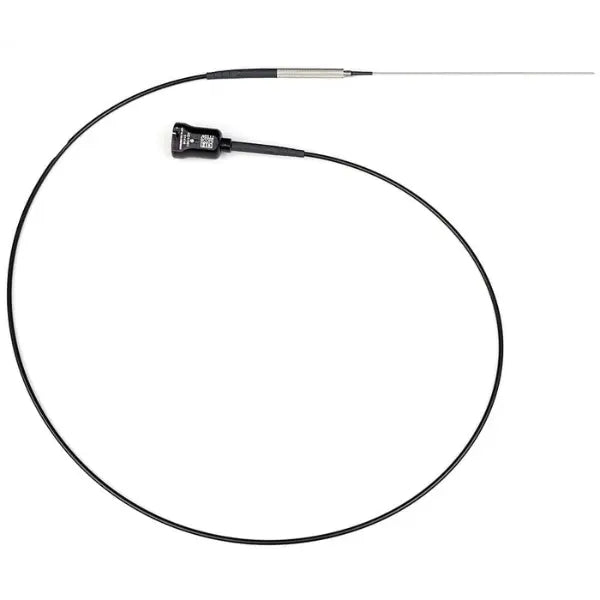

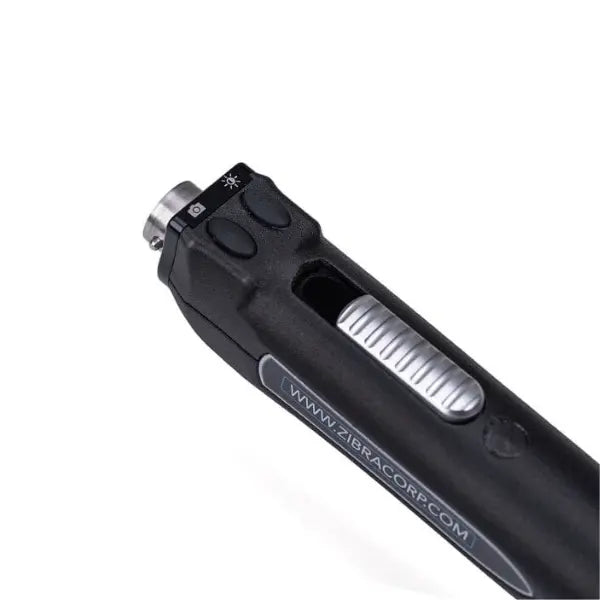

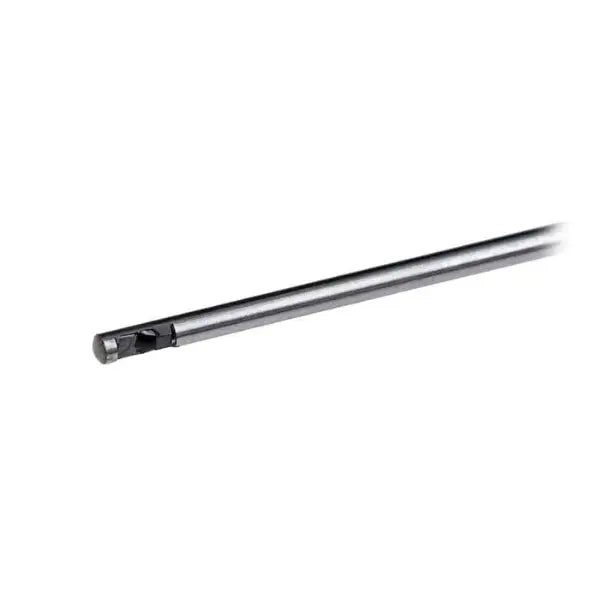

The Zibra MilliWand HDF Semi-Rigid Borescope System brings small-diameter borescope images to any HDMI monitor in clear 1080p HD video. It features an ergonomic handle that makes precision inspection more efficient and effective. The replaceable semi-rigid borescope tips come in various diameters, lengths, and directions of view, allowing for more robust options. On-board image recording lets the inspector capture video and images onto removable memory drives. Included are USB inputs for keyboards for text generation, outputs for HDMI video, and a simple push-button menu interface.



Build an entire system or pick out individual components to add to your current system:

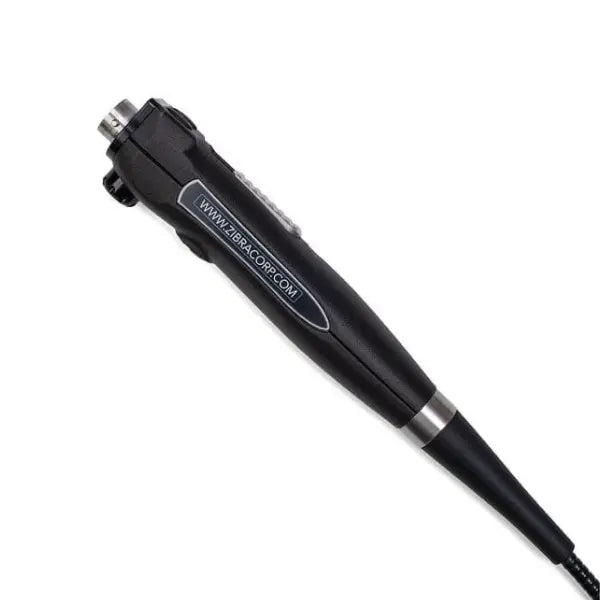

Milliscope HDF Handle
EM15098 - Milliscope HD Zoom Borescope Handle
                  AND

Zibra MilliWand HDF Semi-Rigid Borescope System

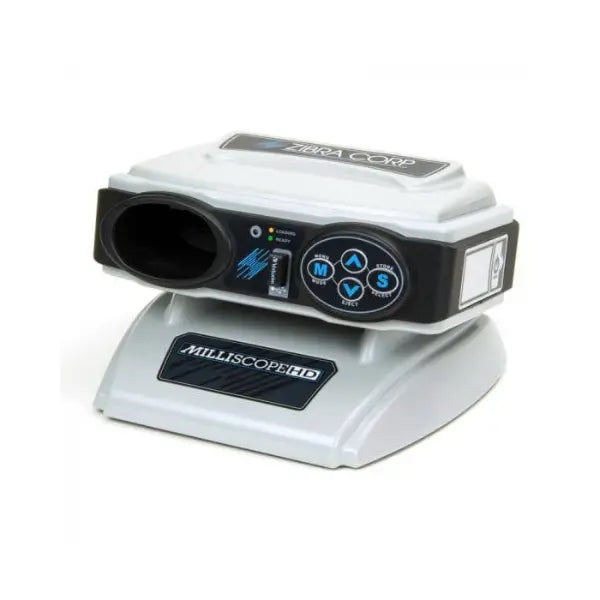

 EM15097 - Milliscope HD Base Unit

                    OR
Milliscope HD Integrated Battery Powered System w/ Monitor
EM17680 - Milliscope HD Integrated Battery Powered System with Monitor





Specifications

Optical Zoom

3x

Illumination

Adjustable white LED

Exposure

Adjustable 9-step exposure

Recording

Push-button image & video capture

Direction of View

0º - 90º

Compatible Scope Diameters

0.5 mm - 1 mm (call for diameters not listed)

Compatible Scope Lengths

105 mm - 150 mm  (call for lengths not listed)

Set Focus

6mm





Downloads

Zibra Milliscope HD Manual
