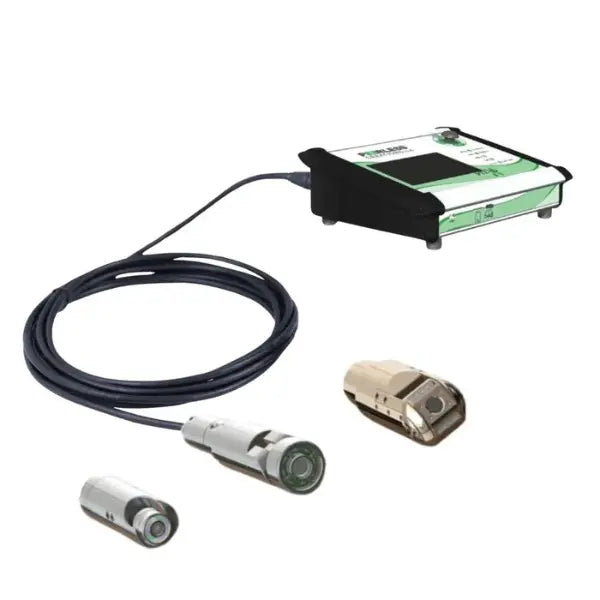

The Peerless PTZ-XD Camera Series is a modular camera system that provides a high-definition image in a compact, configurable package. The pan, title, and zoom cameras come in 3 different diameters: 29, 35, or 45 mm, and cable lengths up to 60 meters (up to 30 meters for the Micro PTZ). This standalone remote vision inspection (RVI) product is ideal for vessel tank inspections or other applications that need to go into small openings and look at large surfaces.
PTZ-XD features a DVR Controller with a viewing device, a joystick for precise pan, tilt, light management, and camera connectors. Output capabilities include HDMI and CVBS, video recording and image capture functionalities, onboard storage (micro-SD), and are compatible with all PTZ-XD series camera heads.
Choose your camera head, cable length, and controller for a full system today!
Specifications
|
PTZ-XD CONTROLLER: PTZ-XDMCU |
|
|
Compression Format |
H.264/H.265 |
|
Illumination Control |
Yes |
|
Video Format |
MP4 (H265+AAC) |
|
Frame Rate |
60fps |
|
Data Storage |
Micro SD 128GB Max |
|
Photo Format |
JPG/JPEG |
|
Image Resolution |
Up to 8MP |
|
Image Capture |
Yes |
|
HDMI Video Resolution |
1920 X 1080 |
|
CVBS Video Resolution |
720 X 576 |
|
Operating Temperature |
-30ºC~70ºC |
|
Power Supply |
DC IN 12V < 1.5 A |
|
System Language |
"Chinese/English/German/ Spanish/Polish/French" |
|
Camera Head: PTZ-45 |
|
|
Image Sensor |
1/2.8 Color HD CMOS |
|
Effective Image Area |
12mm X 9.3mm |
|
Effective Pixel Array |
1945H X 1097V |
|
Pixel Size |
2.8µm X 2.8µm |
|
Signal/Noise Ratio |
>30dB |
|
Back Light Compensation |
Auto |
|
White Balance |
Auto |
|
Min Illumination |
.0001Lux/1.2F |
|
Wide Dynamic Range |
Auto WDR |
|
LED Illumination |
Yes |
|
Operating Temperature |
-30ºC~85ºC |
|
Cable Length |
Up to 60 meters [200'] |
|
Camera Head: PTZ-35 |
|
|
Image Sensor |
1/2.8 Color HD CMOS |
|
Effective Image Area |
12mm X 9.3mm |
|
Effective Pixel Array |
1945H X 1097V |
|
Pixel Size |
2.8µm X 2.8µm |
|
Signal/Noise Ratio |
>30dB |
|
Back Light Compensation |
Auto |
|
White Balance |
Auto |
|
Min Illumination |
.0001Lux/1.2F |
|
Wide Dynamic Range |
Auto WDR |
|
LED Illumination |
Yes |
|
Operating Temperature |
-30ºC~85ºC |
|
Cable Length |
Up to 60 meters [200'] |
|
Camera Head: Micro PTZ |
|
|
Image Sensor |
1/4.4 Color CMOS |
|
Effective Image Area |
3.6mm X 2.03mm |
|
Effective Pixel Array |
1284H X 724V |
|
Pixel Size |
2.8µm X 2.8µm |
|
Signal/Noise Ratio |
>43.1dB |
|
Back Light Compensation |
Auto |
|
White Balance |
Auto |
|
Min Illumination |
.001Lux |
|
Wide Dynamic Range |
Auto WDR |
|
LED Illumination |
Yes |
|
Operating Temperature |
-40ºC~85ºC |
|
Cable Length |
Up to 30 meters [100'] |
