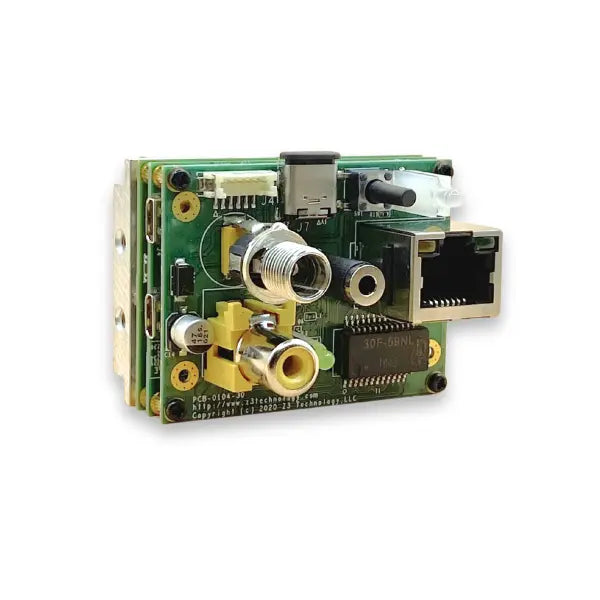

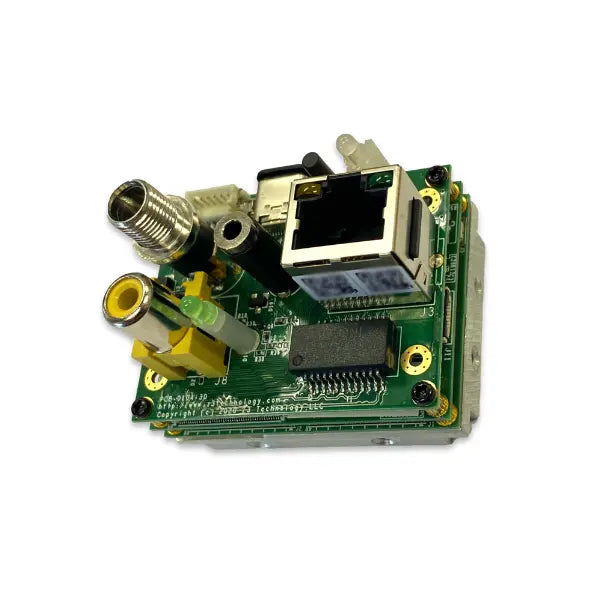

Z3 Technology Q603-10 Single Camera Video Encoder
The Q603-10 by Z3 Technology is an H.265/ H.264 video encoder board that supports visible block cameras like the Sony FCB-EW9500H, FCB-ER8530/J, FCB-EV9520L, and the FCB-EV7520/J,
The powerful Z3 Technology Q603-10 encoding processor takes LVDS or CVBS video signal and command protocols (RS-232/RS-485) and converts them H.265/H.264 codecs in up to 4K video and audio. Video and audio can stream IP and simultaneously record to a USB or micro SD card.

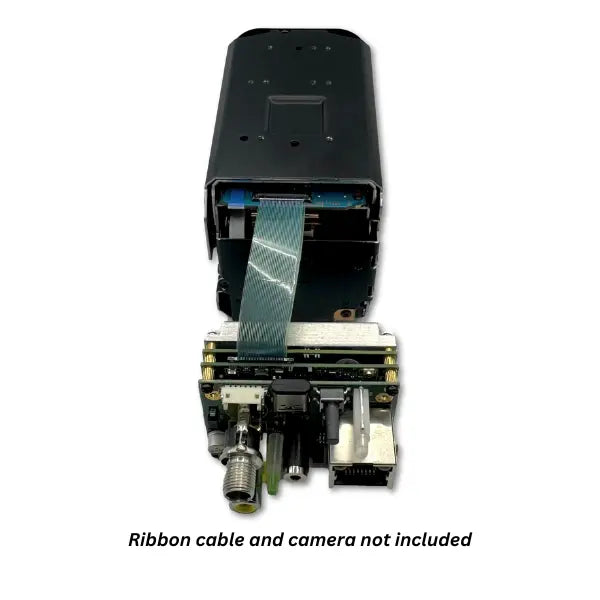

The interface board connects to the Sony module using a 30 Pin Micro-coaxial and has a PoE option for power input. This module can control external devices via RS-232 or RS-485 for the ultimate building block of your motorized Pan Tilt Zoom Camera.
Specifications
|
Visible Camera Format |
Micro HDMI |
|
HD and SD IR Formats |
RS170, NTSC/PAL |
|
Recording |
To either USB, or Micro SD |
|
Additional Interfaces |
GigE, Audio Input, RS-485, Micro-HDMI Output, Composite Output |
|
Video Codecs |
H.265, H.264 |
|
Encoding Resolutions |
4Kp30, 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA |
|
Output Formats |
RTP, RTSP, MPEG-2 TS and RTMP |
|
Encoder Board Size |
58 x 58 x 38 mm (2.28 x 2.28 x 1.49 in) |
|
Video Latency |
Can reach less than 80ms latency |
|
Encoder Board Weight |
104 g (aluminum heat pipe is additional 40 g) |
|
Power Consumption |
4.5W typical while encoding 2 cameras in H.265 video at 1080p60 |
|
Power Supply |
12V DC |
|
Operating Temperature |
-5°C to +70°C |
