Z3 Technology Q603-10W WiFi Single Camera Video Encoder

Z3 Technology Vendor Logo SKU: EM64701MFG: Q603-10W

• H.265/H.264 single-camera video streaming
• WiFi capability
• Interfaces with HDMI, LVDS, and thermal cameras
• Supports 4K or Full HD simultaneous streaming and recording
• ONVIF Profile S and T Compliant
• Full API
• Sony VISCA control and PTZ over IP

CABLE SET REQUIRED FOR OPERATION

Choose A Cable Set

Z3 Technology CBL-0025-01 5 cm KEL Cable
Z3 Technology CBL-0025-01 5 cm KEL Cable
Z3 Technology CBL-0028-01 12 cm KEL Cable
Z3 Technology CBL-0028-01 12 cm KEL Cable
Z3 Technology Q603-KIT/FV2K-KIT/FV4K-KIT Cable Kit for Encoders
Z3 Technology Q603-KIT/FV2K-KIT/FV4K-KIT Cable Kit for Encoders

Description

Details

Z3 Technology Q603-10W WiFi Single Camera Video Encoder

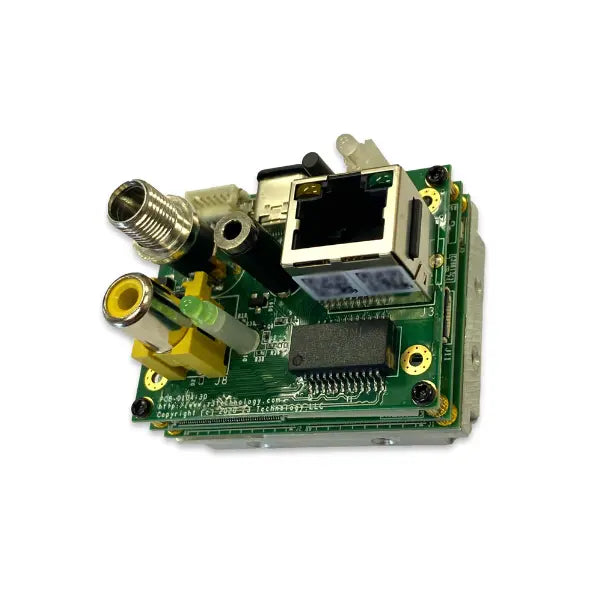

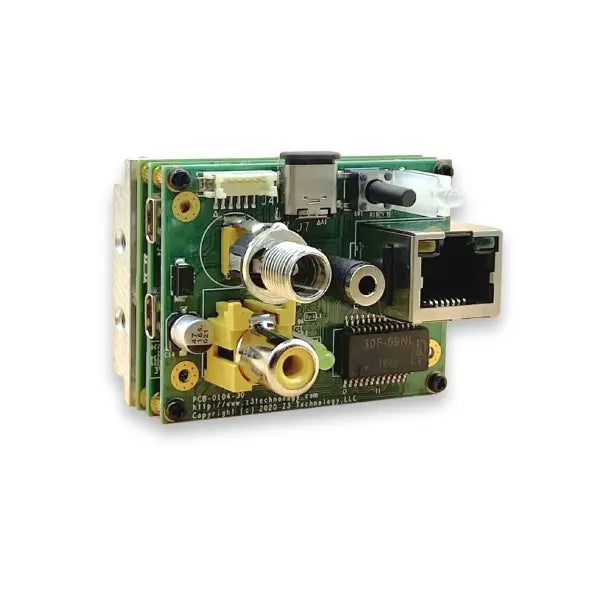

The Q603-10W by Z3 Technology is an H.265/ H.264 video encoder board with WiFi capabilities that supports visible block cameras like the Sony FCB-EW9500HFCB-ER8530FCB-EV9520L, and the FCB-EV7520/J

The powerful Z3 Technology Q603-10 encoding processor takes LVDS or CVBS video signal and command protocols (RS-232/RS-485) and converts them H.265/H.264 codecs in up to 4K video and audio. The encoder has an RF Shield enabling WiFi support. Video and audio can stream IP and simultaneously record to a USB or micro SD card.

The interface board connects to the Sony module using a 30 Pin Micro-coaxial and has a PoE option for power input. This module can control external devices via RS-232 or RS-485 for the ultimate building block of your motorized Pan Tilt Zoom Camera.


Specifications

Visible Camera Format

Micro HDMI

HD and SD IR Formats

RS170, NTSC/PAL

Recording

To either USB, or Micro SD

Additional Interfaces

GigE, Audio Input, RS-485, Micro-HDMI Output, Composite Output

Video Codecs

H.265, H.264

WiFi

WiFi 802.11am dual band 4.33 Mbps

Encoding Resolutions

4Kp30, 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA

Output Formats

RTP, RTSP, MPEG-2 TS and RTMP

Encoder Board Size

58 x 58 x 38 mm (2.28 x 2.28 x 1.49 in)

Video Latency

Can reach less than 80ms latency

Encoder Board Weight

104 g (aluminum heat pipe is additional 40 g)

Power Consumption

4.5W typical while encoding 2 cameras in H.265 video at 1080p60

Power Supply

12V DC

Operating Temperature

-5°C to +70°C



Downloads

Q603-10W Video Encoder Product Brief
