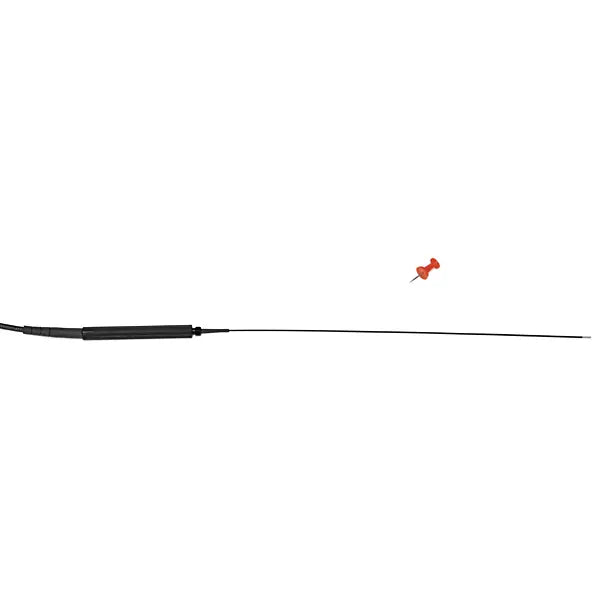

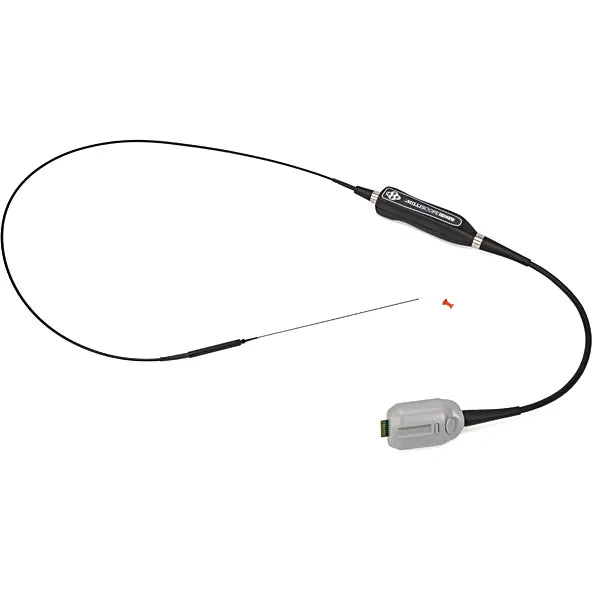

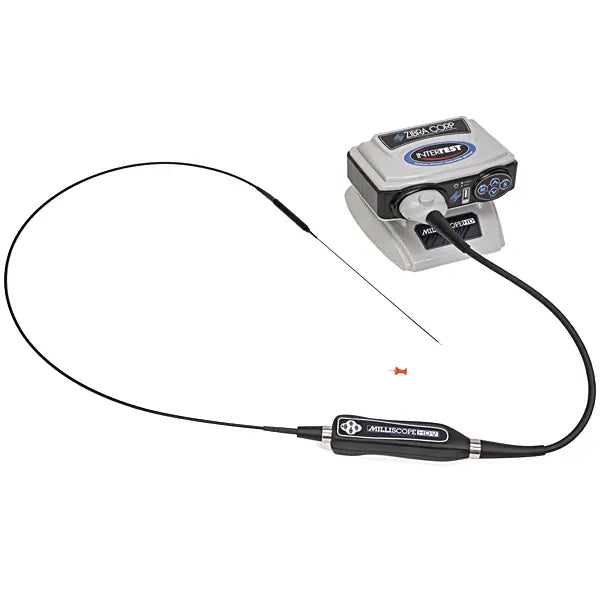

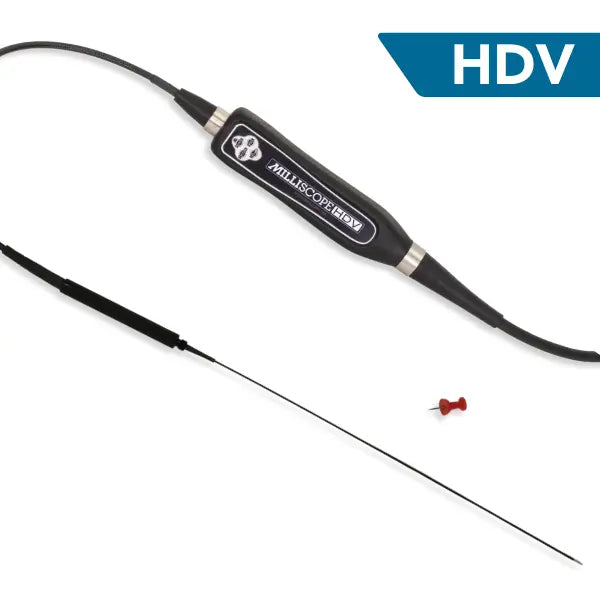

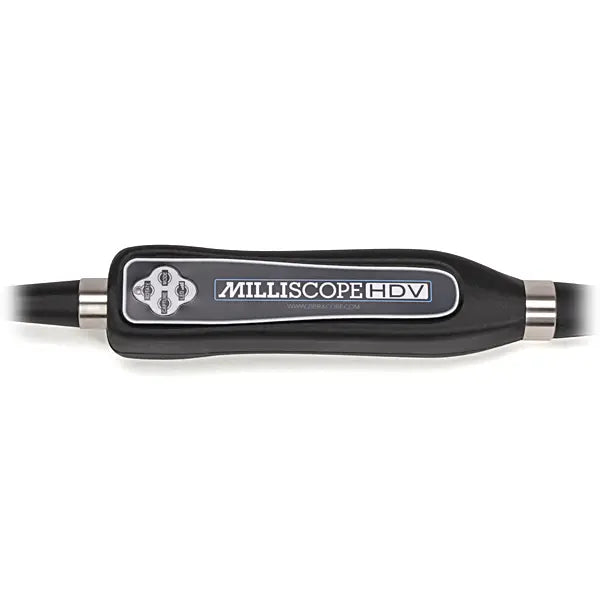

The Zibra MilliWand HDV Flexible Borescope System brings small-diameter video borescope images to any HDMI monitor with high resolution. It features an ergonomic handle that makes precision inspection more efficient and effective. This system comes in various diameters, lengths, and directions of view, allowing for more robust options. The intuitive handle controls let the inspector capture video and images onto removable memory drives for easy file sharing and detailed inspection reports. All MilliWand HDV probes are rugged and designed to withstand repeated use in the harshest inspection environments.
Specifications
| Camera Sensor | CMOS |
| Resolution | 400 x 400 px (160,000 total) |
| Video Output | HDMI |
| Scope Diameters | 1.0 mm, 1.5 mm, 2.2 mm |
| Scope Lengths | 105 mm – 200 mm |
| Directions of View | 0° & 90° (product specific) |
| Depth of Field |
3 - 50 mm for 0° DOV scopes 1 - 30 mm for 90° DOV scopes |
| Field of View | 120° diagonal, 85° horizontal (in air) |
| Field of illumination | 120° |
| Maximum operating temperature | 150° F |
| Recording | Image & video recordings |
