SeeUV® PoleCam HD 1000 Camera Inspection System

SeeUV Brand Logo SKU: EM15470

• Ideal for fluorescent penetrant inspection (FPI) & magnetic particle inspection (MPI)
• Simultaneous UV & white light output
• Full HD resolution: 1080p60 (1920 x 1080)
• Interchangeable optical adapter tips: 0º, 45º, 60º, and 90º direction-of-view
• Remote focus for precise and clear imaging

Choose a Camera Control Unit

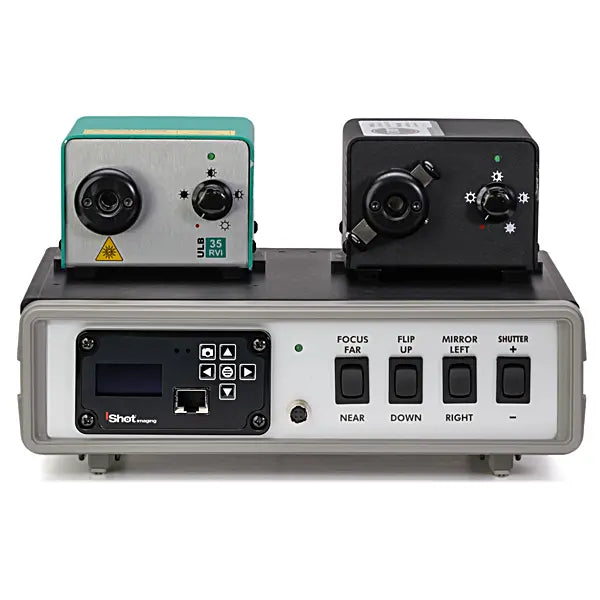

SeeUV PoleCam 1000 HD Camera Control Unit
SeeUV PoleCam 1000 HD Camera Control Unit

Choose an Optical Adapter

SeeUV® PoleCam HD 0º DOV Optical Adapter
SeeUV® PoleCam HD 0º DOV Optical Adapter
SeeUV® PoleCam HD 45º DOV Optical Adapter
SeeUV® PoleCam HD 45º DOV Optical Adapter
SeeUV® PoleCam HD 60º DOV Optical Adapter
SeeUV® PoleCam HD 60º DOV Optical Adapter
SeeUV® PoleCam HD 90º DOV w/ Wide FOV Optical Adapter
SeeUV® PoleCam HD 90º DOV w/ Wide FOV Optical Adapter
SeeUV® PoleCam HD 90º  DOV w/ Narrow FOV Optical Adapter
SeeUV® PoleCam HD 90º DOV w/ Narrow FOV Optical Adapter

Choose a Light Source

iShot® LED-35 (35 Watt) Light Source Kit
iShot® LED-35 (35 Watt) Light Source Kit
iShot® UV-LED Light Source Kit
iShot® UV-LED Light Source Kit
Length: 2' (.069 m)

Description

Details

SeeUV® PoleCam HD 1000 Camera Inspection System

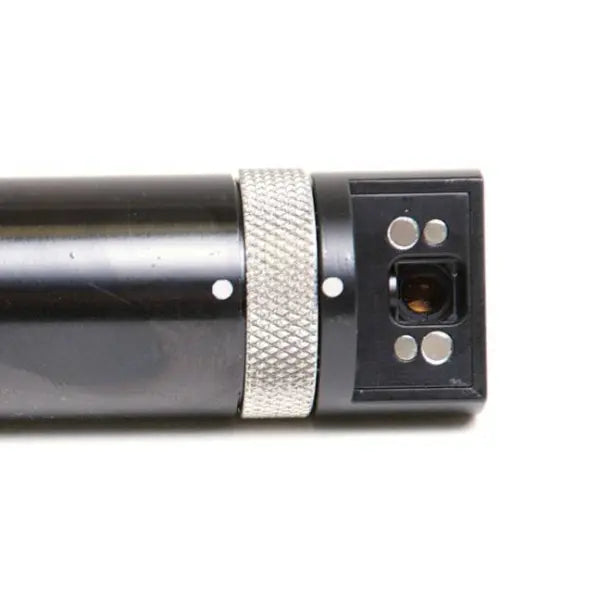

The SeeUV® PoleCam HD 1000 Camera Inspection System is a visual inspection system that combines an HD Color camera with ultraviolet (UV) and white light illumination housed in a rugged 1” diameter pole. An operator can conduct UV and white light inspections typical of magnetic particle inspection (MPI) and fluorescent penetrant inspection (FPI) tests of hard-to-reach internals of critical components, such as center shafts in aircraft engines.

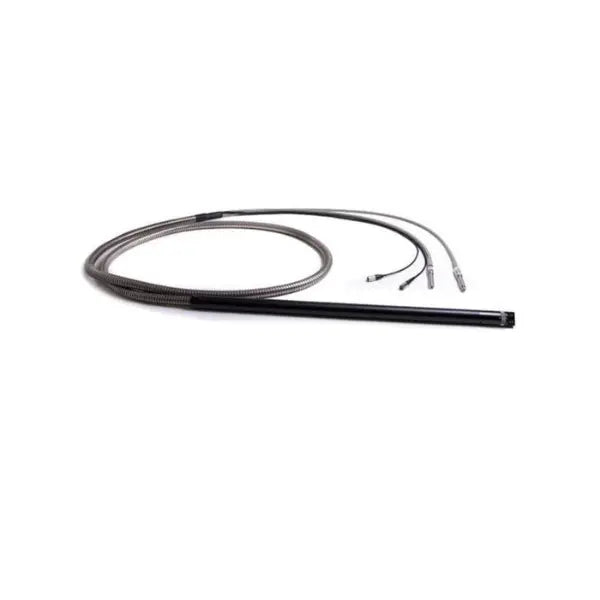

The lightweight pole can be manipulated by hand or mounted on fixtures making the system versatile on the production or maintenance floor.  The motorized remote focus system allows components of different sizes to be inspected quickly and clearly.

The system is designed with independent white and UV illumination capability.  Intensity is controlled separately, and operation can be simultaneous. The white and UV illumination is uniform across the camera's field of view, with UV intensities peaking in at 365 nm wavelength.

The SeeUV® PoleCam HD 1000 uses a high-definition 1/6" CMOS 2-Megapixel image sensor housed in a robust pole with 5 optical adapters providing multiple angles of view and magnifications. The camera can capture color video & still images with resolutions of up to 1080/60p.

Specifications

Camera Specifications

Signal System DVI, USB 2.0
Video Formats 1080p60, 1080p30, 720p60, 480p120
Distance where UV intensity = 2000 μW/cm^2 greater than 4 inches tip to target
Sensor 1/6" CMOS 2 Megapixel
Exposure Auto, Manual
Shutter Values Automatic, over 20 selectable values
Image Controls White Balance, Sharpness, Gamma, Saturation, Contrast, Hue
E-PTZ Available in Downscaled Modes
Presets 4 Available
Color Temp Options 2800K, 4500K, 6500K
Storage Removable Micro SD
Power 5v DC , 800ma, 1a under LED operation



UV Output Data

The data below represents typical results as seen from new units. Results are intended as a general informational benchmark and may vary based on the light guide and UV light source used.

Distance to Target (inches)

EM16312 - 0° Optical Adapter

UV Intensity (μW/cm^2)

EM15477 - 90° Optical Adapter

UV Intensity (μW/cm^2)

1.00 40,000 42,000
2.00 13,000 15,000
3.00 6,500 8,400
4.00 3,800 4,100

Light Source used for the test: EM14465 - iShot UV-LED Light Source Kit

*Values rounded to the nearest hundredth.
