Z3 Technology Z3-Q603-RPS Video Encoder Kit

Z3 Vendor Logo SKU: EM18610 MFG: Z3-Q603-RPS

• Consists of Q603-10 encoder, full software developers kit, cables, and power adapter.
• H.265/H.264 Camera Video Streaming
• Interfaces with HDMI, LVDS, and Thermal cameras
• Support for Sony FCB EV9500H/L, Sony FCB EV7520 and Sony FCB ER8530
• ONVIF Profile S and T Compliant
• Full API
• Sony Visca Control and PTZ over IP

Choose A Cable Set

Z3

Description

Details

Z3 Technology Z3-Q603-RPS Video Encoder Kit

The Z3-Q603-RPS by Z3 Technology is an H.265/ H.264 video encoder board kit that includes the Q603-10 video encoder, cables, power supply, and software developers kit (SDK). This single-camera encoder supports visible block cameras like the Sony FCB-EW9500HFCB-ER8530FCB-EV9520LFCB-EV7520/J, and thermal imaging cameras like the FLIR Boson, FLIR Tau2, and Sierra Olympia Tenum.

The powerful Z3 Technology encoding processor takes LVDS or CVBS video signal and command protocols (RS-232/RS-485) and converts them H.265/H.264 codecs in up to 4K video and audio. Video and audio can stream IP and simultaneously record to a USB or micro SD card.

The interface board connects to the Sony module using a 30 Pin Micro-coaxial and has a PoE option for power input. This module can control external devices via RS-232 or RS-485 for the ultimate building block of your motorized Pan Tilt Zoom Camera.

The Z3-Q603-RPS Kit includes the following:

EM17518 - Z3 Technology Q603-10 Video Encoder

EM12519 - Z3 Technology CBL-0028-01 12 cm KEL Cable

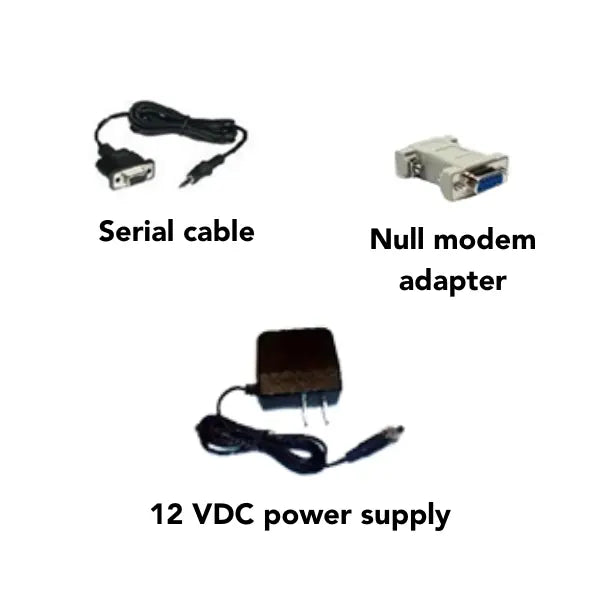

EM17519 - Z3 Technology Q603-KIT Cable Kit for Encoders

Software Developers Kit (with Software Tarball release)



Specifications

Visible Camera Format

Micro HDMI

HD and SD IR Formats

RS170, NTSC/PAL

Recording

To either USB, or Micro SD

Additional Interfaces

GigE, Audio Input, RS-485, Micro-HDMI Output, Composite Output

Video Codecs

H.265, H.264

Encoding Resolutions

4Kp30, 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA

Output Formats

RTP, RTSP, MPEG-2 TS and RTMP

Encoder Board Size

58 x 58 x 38 mm (2.28 x 2.28 x 1.49 in)

Video Latency

Can reach less than 80ms latency

Encoder Board Weight

104 g (aluminum heat pipe is additional 40 g)

Power Consumption

4.5W typical while encoding 2 cameras in H.265 video at 1080p60

Power Supply

12V DC

Operating Temperature

-5°C to +70°C



Downloads

Z3-Q603-RPS Video Encoder Product Brief
