Zibra MilliWand HDF Flexible Borescope System

Zibra Vendor Logo SKU: EM17140

• Quick-Change Operation
• Replaceable Borescope Tips
• Ergonomic Handle for Precision Inspection
• Compact, versatile Operation
• 1080p HD Digital Video Output via HDMI
• Image and Video Capture on Removable Drives

Choose a Camera Control Unit

Zibra Milliscope HD Base Unit
Zibra Milliscope HD Base Unit

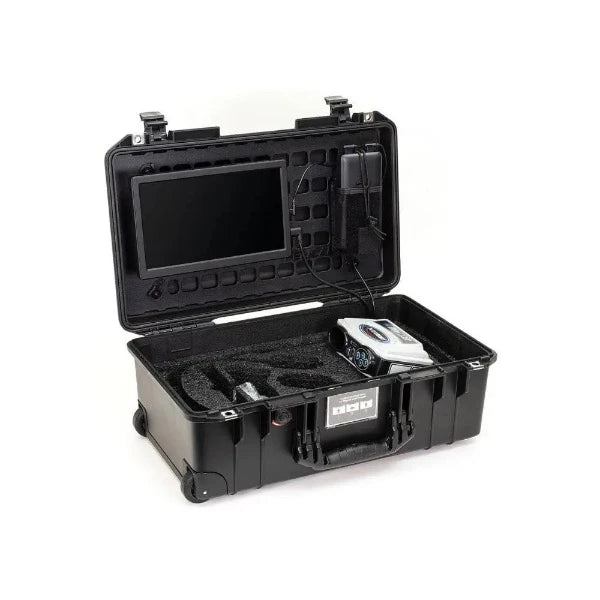

Milliscope HD Integrated Battery Powered System w/ Monitor
Milliscope HD Integrated Battery Powered System w/ Monitor

Choose a Monitor

Sony LMD-B170 17 inch Full HD LCD Color Monitor
Sony LMD-B170 17 inch Full HD LCD Color Monitor
Tru-Vu Monitor VMOBX-15.6Z 15.6” Daylight Readable LCD Monitor Package
Tru-Vu Monitor VMOBX-15.6Z 15.6” Daylight Readable LCD Monitor Package
Diameter: 0.5 mm
Length: 105 mm
Diection of View:

Description

Details

The Zibra MilliWand HDF Flexible Borescope System brings small-diameter borescope images to any HDMI monitor in clear 1080p HD video. It features an ergonomic handle that makes precision inspection more efficient and effective. The replaceable semi-rigid borescope tips come in various diameters, lengths, and directions of view, allowing for more robust options. On-board image recording lets the inspector capture video and images onto removable memory drives. Included are USB inputs for keyboards for text generation, outputs for HDMI video, and a simple push-button menu interface.



Build an entire system or pick out individual components to add to your current system:

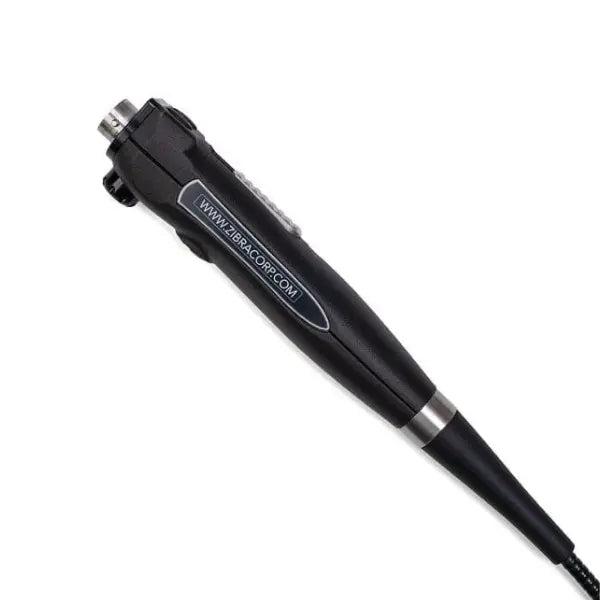

Milliscope HD Zoom Borescope Handle-InterTest EM15098 - Milliscope HD Zoom Borescope Handle
                  AND

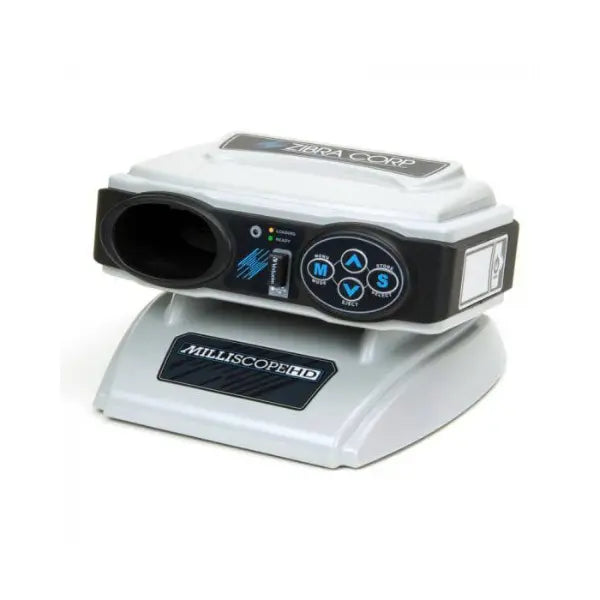

Milliscope HD Base Unit
 EM15097 - Milliscope HD Base Unit

                    OR
Milliscope HD Integrated Battery Powered System w/ Monitor EM17680 - Milliscope HD Integrated Battery Powered System with Monitor




Specifications

Optical Zoom

3x

Illumination

Adjustable white LED

Exposure

Adjustable 9-step exposure

Recording

Push-button image & video capture

Direction of View

0º - 90º

Compatible Scope Diameters

0.5 mm - 1 mm (call for diameters not listed)

Compatible Scope Lengths

105 mm - 150 mm  (call for lengths not listed)

Set Focus

6mm





Downloads

Zibra Milliscope HD Manual
