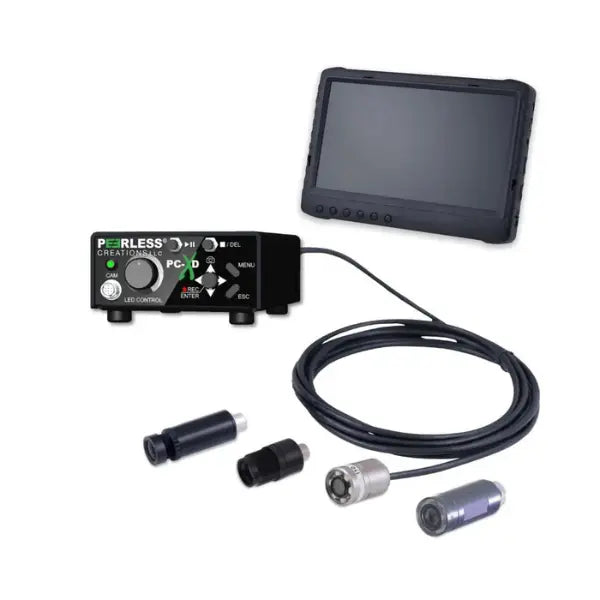

Peerless PC-XD Micro Modular Camera System
The Peerless PX-HD series is a micro-modular camera system that provides a high-definition image from a compact, configurable camera. The PC-XD can be used at much longer cable lengths than the Peerless PC-HD Micro Modular Camera System. It can be used as a standalone remote vision inspection (RVI) product or easily integrated into various OEM configurations.
The HD resolution 1/4.4" CMOS sensor has a 1080p30 and is easily adaptable with various lens types.
The remote, split-head camera style allows for long-distance placement from the Camera Control Unit (CCU), with cable lengths up to 60 meters.
The CCU is available in different formats, such as a typical desktop configuration or upgrading to a Full HD 7" portable display with an 8-hour battery life. It comes in an IP67 enclosure, waterproof to the entire cable length.
The Peerless Micro Modular Camera System is an ideal HD replacement for legacy SD Micro Cameras such as the ELMO MN43H, ELMO MP50H, Toshiba IK-M44H, and Toshiba IK-M51H.
Specifications
PC-XD15 15mm Camera Specifications
| Image Sensor | 1/4.4" Color CMOS |
| Effective Image Area | 3.6mm x 2.03mm |
| Effective Pixel Array | 1284 H x 724 V |
| Pixel Size | 2.8µm x 2.8µm |
| Signal / Noise Ratio | >43.1 dB |
| Back Light Compensation | Auto |
| White Balance | Auto |
| Min. Illumination | .001 lx |
| Wide Dynamic Range | Auto WDR |
| Lens Mount | M12 |
| Cable Lengths | 3m-60m |
| Dimensions | 15 mm diameter x 39 mm length |
PC-XD17 17mm Camera Specifications
| Image Sensor | 1/4.4" Color CMOS |
| Effective Image Area | 3.6mm x 2.03mm |
| Effective Pixel Array | 1284 H x 724 V |
| Pixel Size | 2.8µm x 2.8µm |
| Signal / Noise Ratio | >43.1 dB |
| Back Light Compensation | Auto |
| White Balance | Auto |
| Min. Illumination | .001 lx |
| Wide Dynamic Range | Auto WDR |
| Lens Mount | M15.5 |
| Cable Lengths | 3m-60m |
| Dimensions |
17 mm diameter x 39 mm length |
PC-HD19 19 mm Camera Specifications
| Image Sensor | 1/4.4" Color CMOS |
| Effective Image Area | 3.6mm x 2.03mm |
| Effective Pixel Array | 1284 H x 724 V |
| Pixel Size | 2.8µm x 2.8µm |
| Signal / Noise Ratio | >43.1 dB |
| Back Light Compensation | Auto |
| White Balance | Auto |
| Min. Illumination | .001 lx |
| Wide Dynamic Range | Auto WDR |
| Lens Mount | Proprietary |
| Cable Lengths | 3m-60m |
| Dimensions |
19 mm diameter x 30 mm length |
PC-XD25 25mm Camera Specifications
| Image Sensor | 1/2.8" Color HD CMOS |
| Effective Image Area | 12mm x 9.3mm |
| Effective Pixel Array | 1945 H x 1097 V |
| Pixel Size | 2.8µm x 2.8µm |
| Signal / Noise Ratio | >30 dB |
| Back Light Compensation | Auto |
| White Balance | Auto |
| Min. Illumination | .0001 lx/ F1.2 |
| Wide Dynamic Range | Auto WDR |
| Lens Mount | Proprietary |
| Cable Lengths | 3m-60m |
| Dimensions |
25 mm diameter x 70 mm length |
| LED Illumination |
Yes |
| Resolution |
1080p |
Camera Control Unit Specifications
| Illumination Sensor |
PC-XDVR5: Yes PC-XDVR7: Yes PC-XDVRCU: No PC-XDVRIL: Yes, variable |
| Data Storage |
PC-XDVR5: MicroSD Card 2 - 128GB PC-XDVR7: MicroSD Card 2 - 128GB PC-XDVRCU: Dual SD cards up to 512GB each PC-XDVRIL: Dual SD cards up to 512GB each |
| Compression Format | H.264/H.265 |
| Recording Mode |
PC-XDVR5: Manual PC-XDVR7: Manual PC-XDVRCU: Power On/Manual/Detection/Timed Recording PC-XDVRIL: Power On/Manual/Detection/Timed Recording |
| Signal / Noise Ratio |
PC-XDVR5: AVI PC-XDVR7: AVI PC-XDVRCU: MP4 (H.625+AAC) PC-XDVRIL: MP4 (H.625+AAC) |
| Frame Rate | 60fps |
| Auto Overwrite | Option to override |
| Photo Format | JPG/JPEG |
| Image Resolution |
PC-XDVR5: 5MP, 3MP, 2MP, 1.3M, VGA PC-XDVR7: 5MP, 3MP, 2MP, 1.3M, VGA PC-XDVRCU: Up to 8MP PC-XDVRIL: Up to 8MP |
| Snap a Photo |
PC-XDVR5: Yes PC-XDVR7: Yes PC-XDVRCU: Remote option only PC-XDVRIL: Remote option only |
| HDMI Video Resolution |
PC-XDVR5: N/A PC-XDVR7: N/A PC-XDVRCU: 1280x720 and 1920x1080 for PC-XD25 only PC-XDVRIL: 1280x720 and 1920x1080 for PC-XD25 only |
| CVBS Video Resolution |
PC-XDVR5: N/A PC-XDVR7: N/A PC-XDVRCU: 1280x720 and 1920x1080 for PC-XD25 only PC-XDVRIL: 1280x720 and 1920x1080 for PC-XD25 only |
| Operating Temperature |
-30ºC~70ºC |
| Power Supply |
PC-XDVR5: DC IN 12V 2A PC-XDVR7: DC IN 12V 2A PC-XDVRCU: 1280x720 and 1920x1080 for PC-XD25 only PC-XDVRIL: 1280x720 and 1920x1080 for PC-XD25 only |
| System Language |
Chinese/English/German/Spanish/Polish/French |
|
ONLY FOR PC-XDVR5 & PC-XDVR7 |
|
| Aspect Ratio | 16:9 |
| 64GB Recording Time | 24-64 hours |
| Built-in Battery |
PC-XDVR5: Li-battery 4.5Ah PC-XDVR7: 7.0Ah |
| Battery Working Time | ≈ 4-6 hours |
| Screen Size |
PC-XDVR5: 107mm W x 64mm H PC-XDVR7: 154mm W x 85mm H |
| Screen Brightness | 400 cd/m² |
| Audio Frequency Range | 20Hz-20KHz |
| Audio Compression Format | AAC |
| Built-in Speaker | 1W |
| Monitor Video Resolution | 1280x720 and 1920x1080 for PC-XD25 only |
Downloads
PC-XDVR5 & PC-XDVR7 DVR Monitor Controller Specification Sheet
