SeeUV® Flexicam HD-UV Video Probe

SeeUV Brand Logo SKU: EM17480

• Ideal for fluorescent penetrant inspection (FPI) & magnetic particle inspection (MPI)
• UV & white light output
• Full HD resolution: 1080p60 (1920 x 1080)
• Side Viewing 90° Mirror attachment

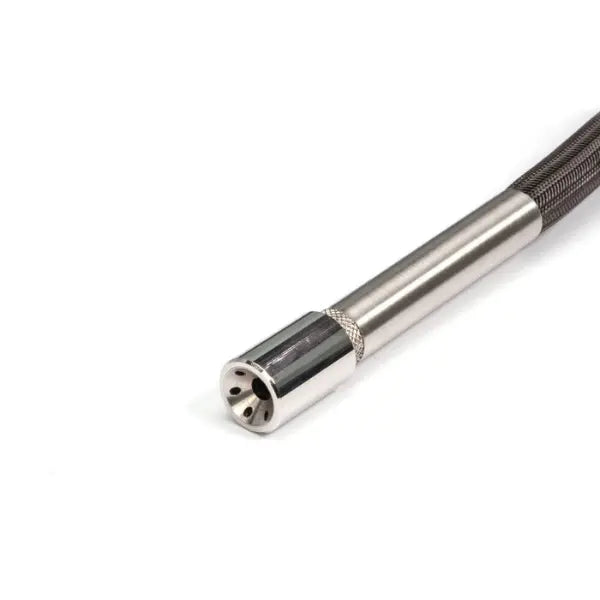

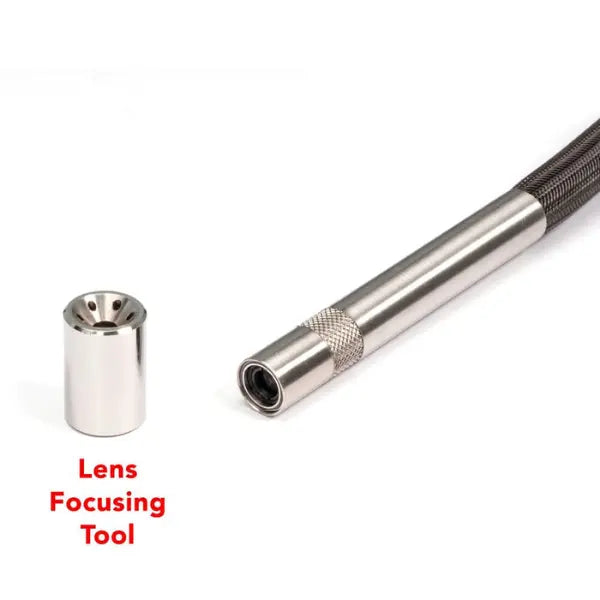

• Includes focus tool for precise and clear imaging

Choose a Lens

iShot® 2.5mm Lens for QNHD Camera (60º FOV)
iShot® 2.5mm Lens for QNHD Camera (60º FOV)
iShot® 4mm Lens for QNHD Camera (40º)
iShot® 4mm Lens for QNHD Camera (40º)
iShot® 7.1mm Lens for QNHD Camera (20º FOV)
iShot® 7.1mm Lens for QNHD Camera (20º FOV)
iShot® 15 mm Lens for QNHD Camera (10º FOV)
iShot® 15 mm Lens for QNHD Camera (10º FOV)

Choose a Camera Control Unit

iShot® QNHD Camera Control Unit
iShot® QNHD Camera Control Unit

Accessories

iShot® QNHD Power Supply, USB-C
iShot® QNHD Power Supply, USB-C

Choose an Optical Adapter

SeeUV FlexiCam Right Angle Adapter
SeeUV FlexiCam Right Angle Adapter

Choose a Monitor

IP Multi-Format Test Monitor - SC-IPM07PRO
IP Multi-Format Test Monitor - SC-IPM07PRO
Sony LMD-B170 17 inch Full HD LCD Color Monitor
Sony LMD-B170 17 inch Full HD LCD Color Monitor

Choose a Light Source

Articulation: 4-Way Articulating
Length: 1 m

Description

Details

SeeUV® Flexicam HD-UV Video Probe

The SeeUV® Flexicam HD-UV Video Probe is a remote visual inspection (RIVI) system that combines an HD Color camera with ultraviolet (UV) and white light illumination housed in a flexible probe with articulation or non-articulation options. An inspector may conduct UV and white light inspections typical of fluorescent penetrant inspection (FPI) and magnetic particle inspection (MPI) methods in hard-to-reach internals of critical components such as center shafts in aircraft component inspections of engines.

The video probe is designed to work with either white or UV illumination.   The white and UV illumination is uniform across the camera's field of view, with UV intensities peaking in at 365 nm wavelength.

4-way Articulation

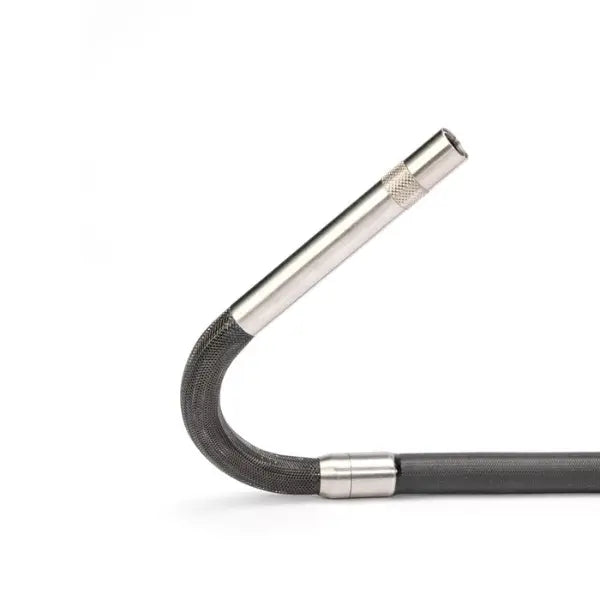

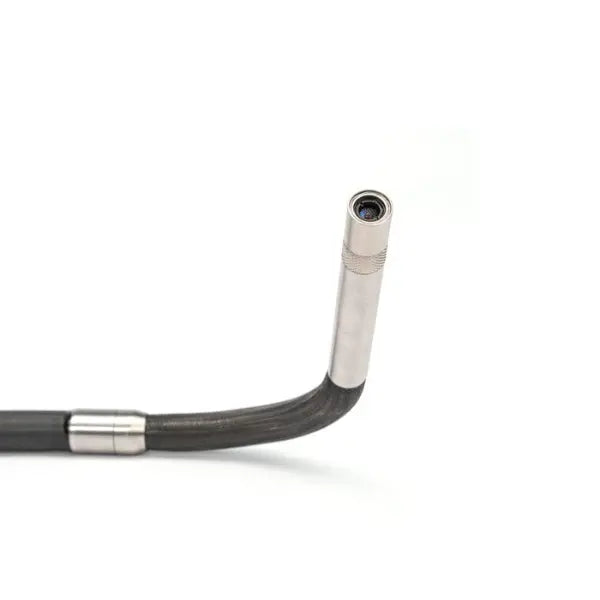

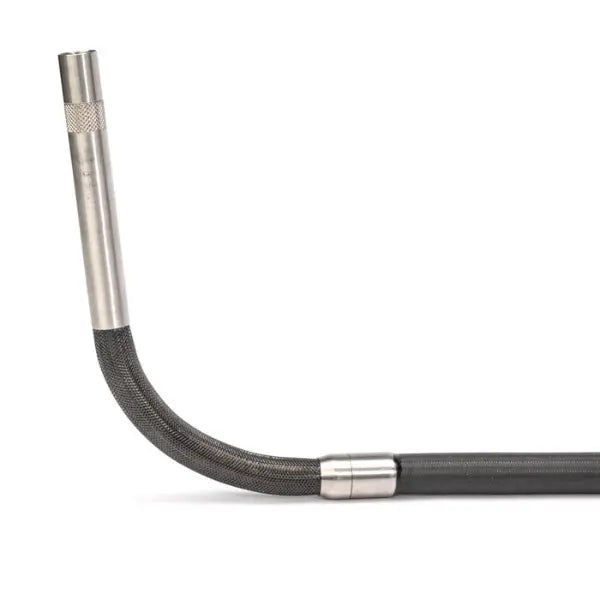

The 4-way articulation system allows for 180° in 4 directions, allowing effortless maneuverability within bores and cavities with nonstandard geometries.  An optional Right Angle Mirror Accessory provides further access and viewing angles for hard-to-reach areas.

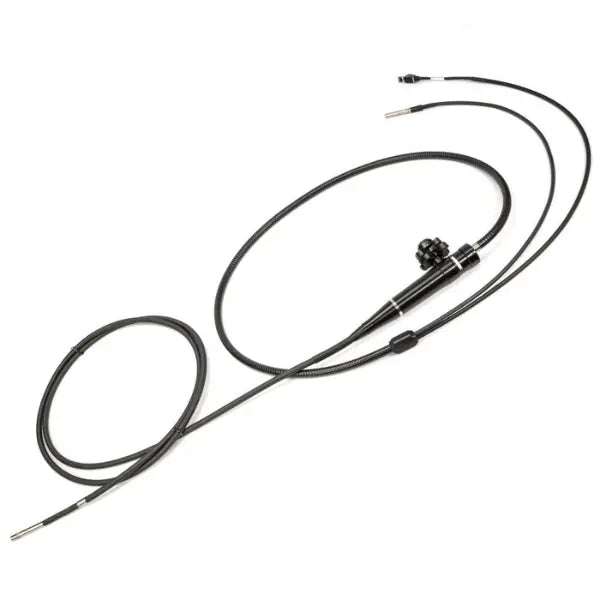

Articulation options use intuitive rotating control knobs to achieve movement in all directions. With manual focus and variable lens options, the SeeUV® Flexicam HD Video Probe is a dynamic system that allows for components of different sizes to be visually inspected.

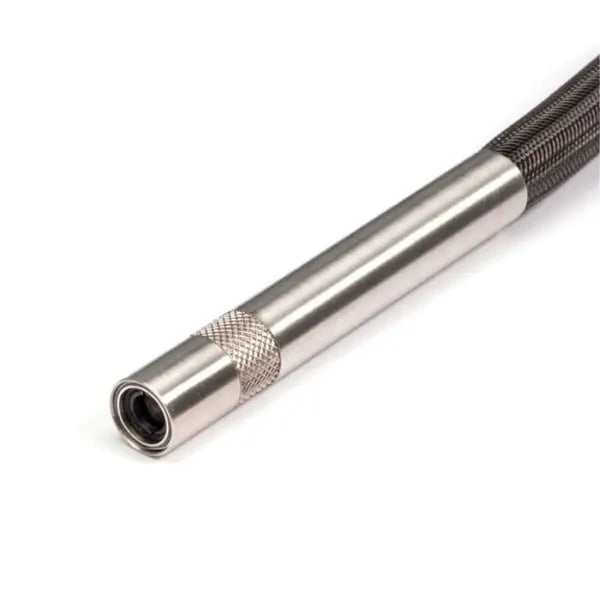

The SeeUV® Flexicam HD with 4-Way Articulation uses a high-definition 1/6" CMOS 2-Megapixel image sensor housed in a robust probe configuration. With software, the camera can capture color video & still images with resolutions of up to 1080/60p.

Specifications

Camera Specifications

Signal System DVI, USB 2.0
Video Formats 1080p60, 1080p30, 720p60, 480p120
Distance where UV intensity = 2000 μW/cm^2 4 inches tip to target
Sensor 1/6" CMOS 2 Megapixel
Exposure Auto, Manual
Shutter Values Automatic, over 20 selectable values
Image Controls White Balance, Sharpness, Gamma, Saturation, Contrast, Hue
E-PTZ Available in Downscaled Modes
Presets 4 Available
Color Temp Options 2800K, 4500K, 6500K
Storage Removable Micro SD
Power 5v DC , 800ma, 1a under LED operation
Inner Layer Material Stainless Steel Monocoil w/ Urethan Cover
Outer Layer Material Tungsten Braid



UV Data Output

The data below represents typical results from new units. These results are intended as a general informational benchmark and may vary based on the light guide diameter, length, and UV light source (standalone or LED).

Distance to Target (inches) UV Intensity (μW/cm2)*
1.00 17,000
2.00
6,700
3.00 3,400
4.00 2,000
5.00 1,500

Probe used for the test: EM17500 SeeUV® Flexicam HD-UV Video Probe - 3 meter length, 4-way articulation

Light Source used for the test: iShot UV/White LED Light Source Kit w/ Machida Adapter

*Values rounded to the nearest hundredth.


Downloads

Product Manual
